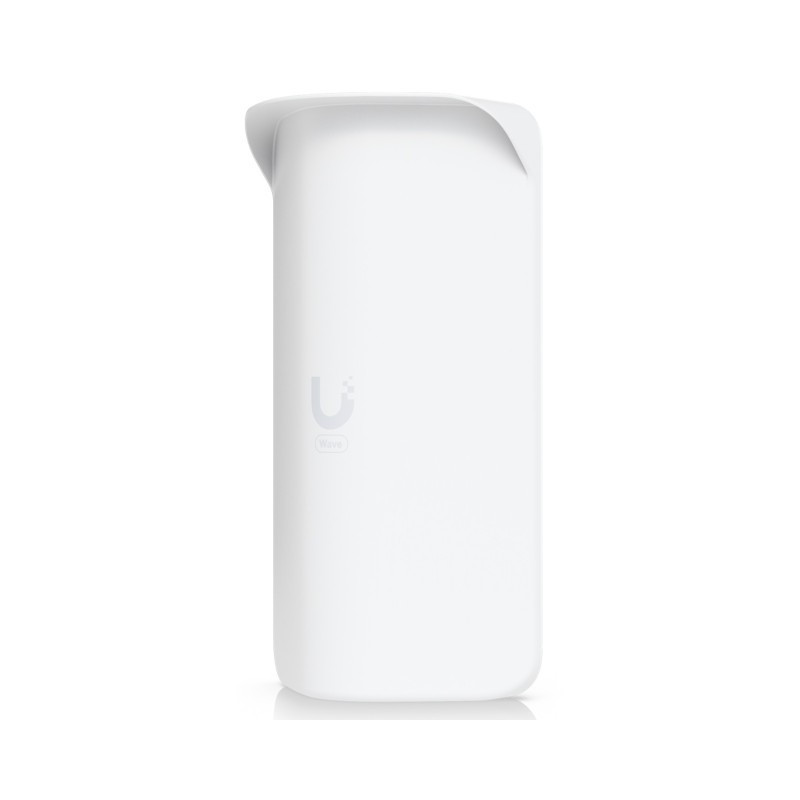

Wave AP Gen2

Mechanical
Dimensions    158.3 x 286.8 x 100.2 mm
Weight    1.5 kg
Enclosure material    UV stabilized polycarbonate, aluminum alloy
Pole mount diameter    25.4 to 60 mm on pipe outer diameter
Wind loading    109.8 N at 200 km/h
Weatherproofing    IPX6
Hardware
Processor    Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory    DDR3L 512 MB
Networking interface    (1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
Max. power consumption    24W
Power method    Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply    48V DC, 0.65A 2.5 GbE PoE adapter (Included)
Supported voltage range
44–54V DC
22–27V DC
GPS    Yes
Button    Factory reset
LEDs    Power, Ethernet, GPS
Ambient operating temperature    -40 to 60° C
Ambient operating humidity    5 to 95% noncondensing
Certifications    FCC, IC, CE
Software
Operating mode    PtMP access point
Ubiquiti specific features    Wave AI, discovery protocol
Services    UISP, ping watchdog, NTP client, SNMP
Tools    Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey
Network    Bridge mode
Application requirements    UISP: Version 2.4.205 and later
System
Total throughput    5.4 Gbps
Supported clients count    31
Max. range    Connecting to a Wave Pro: up to 6 km
Connecting to a Wave Long-Range: up to 6 km
Connecting to a Wave Nano: up to 4 km
Connecting to a Wave Pico: up to 0.9 km
Encryption    WPA2-PSK (AES)
RF
Operating frequency*    57–71 GHz
*Depends on regulatory region.
Channel bandwidth    2160, 1080, 540 MHz
Operating channels*    58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
*Depends on regulatory region.
Modulation    16QAM, QPSK
Antenna gain    20 dBi
Polarization    Vertically linear
Beamwidth    Azimuth: 3 dB 90°
Elevation: 3 dB 7°
Electrical downtilt    0°
Back-Up RF
WiFi standard    802.11ax (WiFi 6)
Operating frequency*
US/CA
Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth    20, 40, 80 MHz
Modulation    BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain    13 dBi
Cross-pol isolation    18 dB
Polarization    Dual-linear
Beamwidth    Azimuth: 6 dB 95°
Elevation: 6 dB 25°
Electric downtilt    0°
LEDs
Power    Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet    Flashing white: Ethernet traffic detected
Flashing blue: SFP+ traffic detected
GPS    Blue: receiving at least (4) GPS satellite signal
