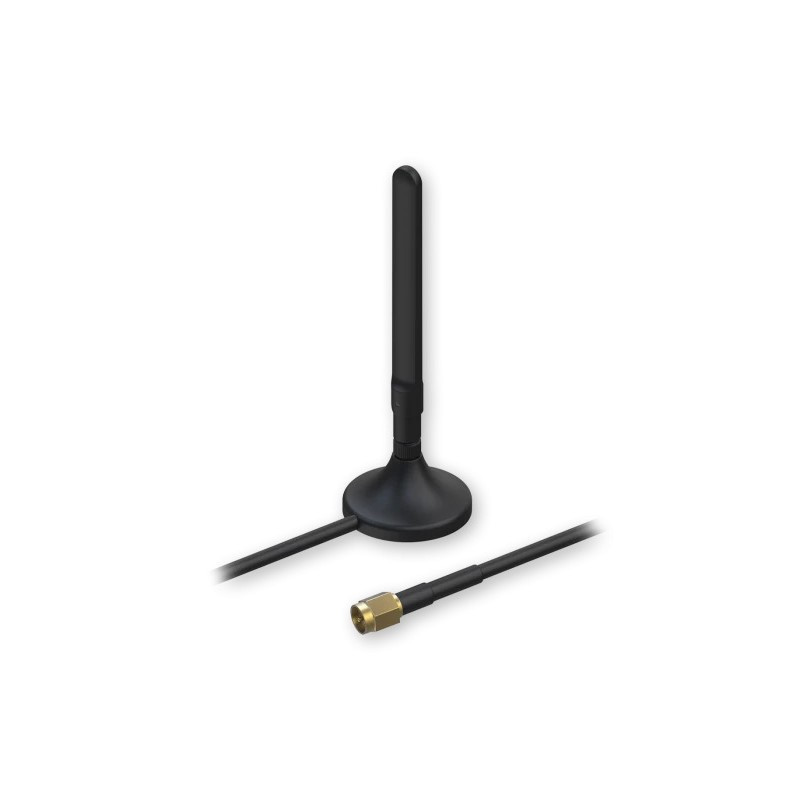

5G Mobile magnetic SMA Antenna
58,00 lei
Include TVA
Livrare in 24-48 ore
5G mobile magnetic antenna provides gain up to 3.6 dBi. Frequency range: 617-960, 1400-2690, 3300-5900 MHz. The antenna connects via SMA Male connector.
Taxa Timbru Verde
este inclusa in pretul produsului
5G mobile magnetic antenna provides gain up to 3.6 dBi. Frequency range: 617-960, 1400-2690, 3300-5900 MHz. The antenna connects via SMA Male connector.
Frequency range: 617 ~ 960, 1400 ~ 2690, 3300 ~ 5900 MHz
Polarization: Linear
Radiation pattern type: Omnidirectional
Gain: 3.6 dBi
VSWR: 3.5
Impedance: 50 Ω
Maximum power: 20 W
Cable: RG-58, 1500 mm
Connector type: SMA Male
Operating temperature: –20°C ~ +65°C
Mounting method: Magnet
IP rating: IP33
RoHS compliant: ✓
Weight: 150 g
PR1KS536
17 bucati
Fisa tehnica
- Frecventa
- 617-960/1400-2690/3300-5900MHz
- 3G / LTE / 4G / 5G
- Da
