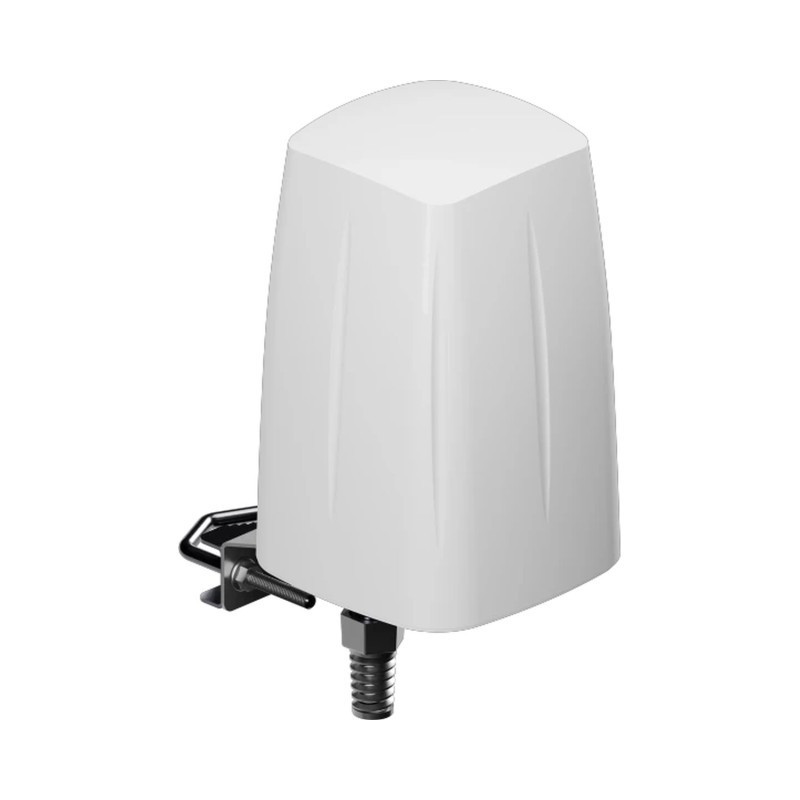

OUTDOOR LTE/WI-FI/GPS ANTENNA FOR RUT9-SERIES ROUTERS

LTE ANTENNA
    Frequency Range 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
    Polarisation Vertical
    Radiation pattern type Omnidirectional
    Gain Max 4.5 dBi
    V.S.W.R < 2.50
    Impedance 50 Ω
    Connector type and count 2x SMA male

GNSS ANTENNA
    Frequency Range 1560 ~ 1610 MHz
    Polarisation RHCP
    Gain 28 dBi
    V.S.W.R < 2.00
    Impedance 50 Ω
    Connector type and count 1x SMA male
    Current consumption 2.5 - 6.5 mA
    Supply voltage 2.5 - 6.5 VDC

WI-FI ANTENNA
    Frequency Range 2400 ~ 2500, 4700 ~ 6000 MHz
    Polarisation Vertical
    Radiation pattern type Omnidirectional
    Gain Max 7.5 dBi
    V.S.W.R < 2.00
    Impedance 50 Ω
    Connector type and count 2x RP-SMA male

MECHANICAL/ENVIRONMENTAL
    Cable 4x RG316, 1x RG174
    Operating Temperature -40 °C to 75 °C
    Mounting Method Wall, ceiling, mast
    IP rating IP67
    Weight 1500 g
    RoHS compliant ✓
