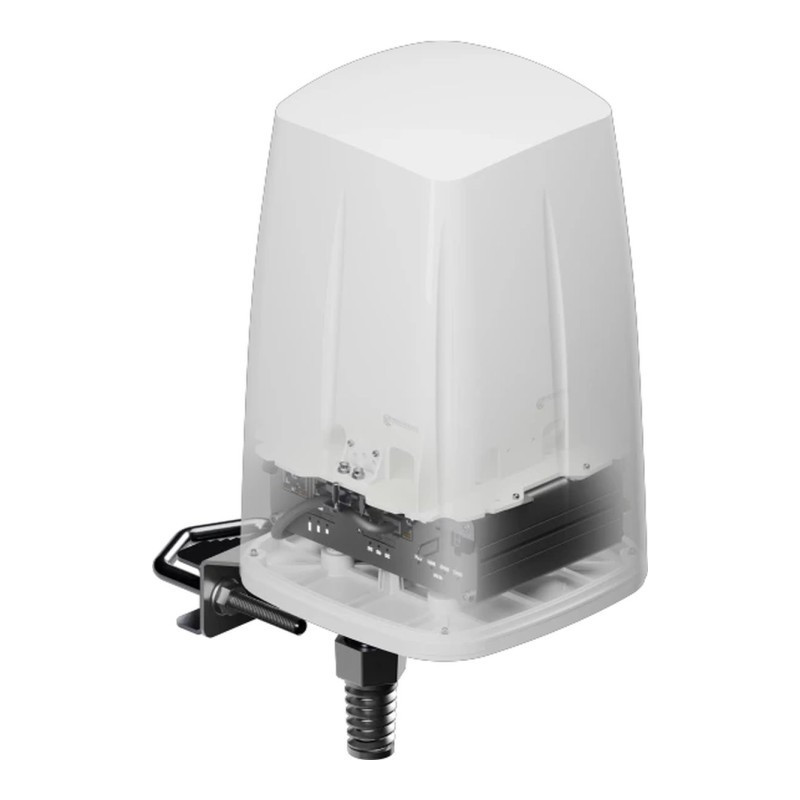

OUTDOOR LTE & 5G/WI-FI/GPS ANTENNA FOR RUTX50 AND RUTM50 ROUTERS
921,00 lei
Include TVA
Livrare in 5-7 zile lucratoare
Outdoor LTE & 5G/Wi-Fi/GPS antenna for RUTX50 router.
Key features
- IP67 - Water and dust-resistant for ultimate outdoor reliability
- OMNIDIRECTIONAL - Designed for reliable signal coverage from every direction
- INTEGRATED MOUNTING BRACKET - Quick and easy pole/mast mounting
- PERFECT ROUTER MATCH - Compatible and designed to contain selected Teltonika router
Taxa Timbru Verde
este inclusa in pretul produsului
MECHANICAL/ENVIRONMENTAL
Cable 6x RG316, 1x RG174
Operating temperature -40 °C to 75 °C
Mounting method Wall, ceiling, mast
IP rating IP67
Weight 1500 g
RoHS compliant ✓
This antenna is compatible with the RUTC50, although Wi-Fi performance may be limited since the device is equipped with three Wi-Fi antenna connectors, and using only two of them can affect overall performance. When installing, make sure to attach the RUTC50 antenna connectors only to the left and right Wi-Fi connectors of the combo antenna, and do not connect anything to the middle connector.
5G ANTENNA
Frequency range 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
Polarisation Vertical
Radiation pattern type Omnidirectional
Gain Max 4.5 dBi
V.S.W.R < 2.50
Impedance 50 Ω
Connector type and count 4x SMA male
GNSS ANTENN Frequency range 1560 ~ 1610 MHz
Polarisation RHCP
Gain 28 dBi
V.S.W.R < 2.00
Impedance 50 Ω
Connector type and count 1x SMA male
Current consumption 2.5 - 6.5 mA
Supply voltage 2.5 - 6.5 VDC
WI-FI ANTENN Frequency range 2400 ~ 2500, 4700 ~ 6000 MHz
Polarisation Vertical
Radiation pattern type Omnidirectional
Gain Max 7.5 dBi
V.S.W.R < 2.00
Impedance 50 Ω
Connector type and count 2x RP-SMA male
PR1ICA70
Fisa tehnica
- Frecventa
- 617~960/1700~2700/3300~4300 MHz
- 3G / LTE / 4G / 5G
- Da
