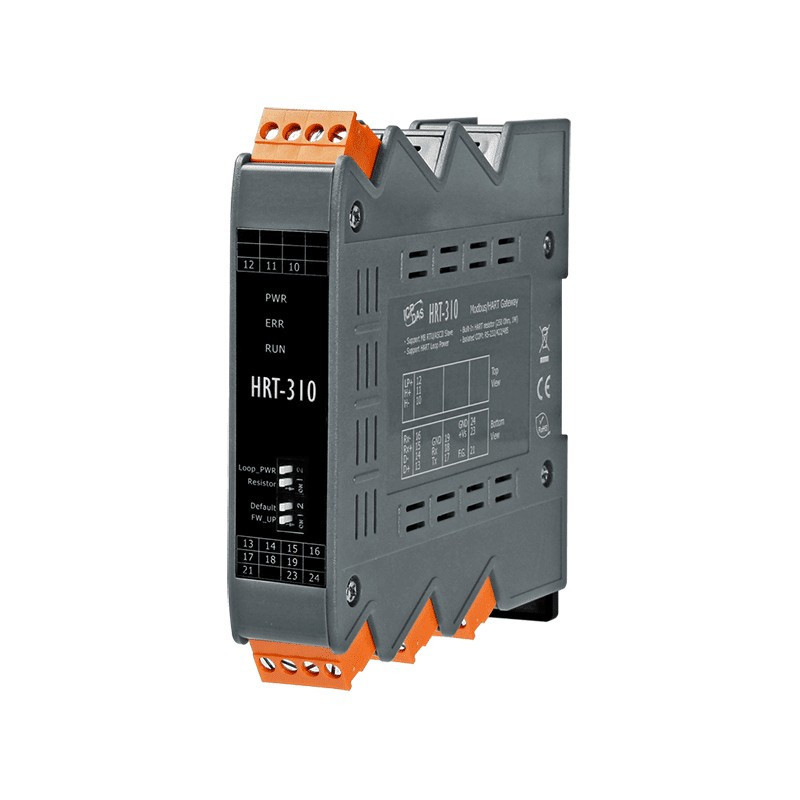

HRT-310

Ofertă la cerere!

Include TVA Livrare in 5-7 zile lucratoare
  • Support HART Short/Long frame
  • Support HART Burst mode
  • Allow two HART Masters
  • Working in point-to-point or multi-drop HART mode
  • Connecting up to 15 HART modules
  • Support Modbus RTU and ASCII format
  • Support Modbus Slave mode
  • Support firmware update via Com Port
  • Support on-line replacement of HART devices
  • Support acquire Long Frame Address automatically
  • Provide LED indicators
  • Built-in Watchdog
  • DIN Rail or Wall Mounting

Cantitate
Cere ofertă
Se aduce la comanda in 7-14 zile, in functie de stoc furnizor !

  Taxa Timbru Verde

este inclusa in pretul produsului

COM Ports
Ports RS-232(3 wires) / RS-422 / RS-485
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol Modbus RTU / Modbus ASCII
HART
Ports 1
Device 2-wired or 4-wired HART devices
Topology Point to Point or Multi-Drop
Data Only Digital Data
Frame Type Short and Long Frame
Burst Mode Supported
Max. HART Device 15
Loop Resistor 250 Ω (1W) by Dip-Switch
Isolation UL1577 Spec.
Protocol 2-pin screwed terminal block
Loop Power Yes (module provides +30V output)
Power
Reverse Polarity Protection Power reverse polarity protection, Over-voltage brown-out protection
Input Range Unregulated +10 ~ +30 VDC
Consumption 3.5W (Max.)
Mechanical
Dimensions (mm) 25 x 116 x 120 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10% ~ 90% RH, Non-condensing
