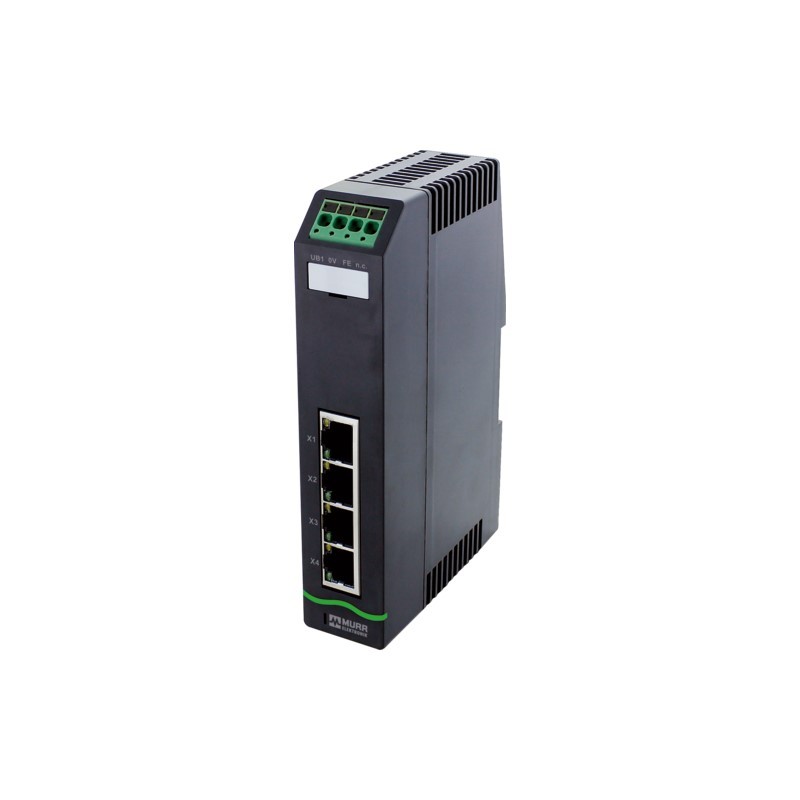

Xelity 4TX Unmanaged Switch 4 Port 100Mbit

Electrical data | Supply
Operating voltage DC min.     9,5 V
Operating voltage DC max.     31,5 V
Current consumption max.     35 mA
Industrial communication
Data transmission rate max.     100 MBit/s
Industrial communication | Ethernet functionality
Auto-crossover     yes
Auto-negotiation     yes
duplex     Full duplex
Switch type     unmanaged
VLAN unmanaged (IEEE 802.1Q)     yes
Diagnostics
Alarm contact     no
Diagnostic     No voltage
LED display     Ethernet connection/data traffic
Device protection | Electrical
Degree of protection (EN IEC 60529)     IP20
Invers-polarity protection     yes
Over voltage protection     yes
Mechanical data | Material data
Color housing     black
Material housing     Plastic
Mechanical data | Mounting data
Mounting method     geschnappt
Suitable for mounting type     Mounting rail TH35, (EN 60715)
Height     140 mm
Width     30 mm
Depth     85,1 mm
Environmental characteristics | Climatic
Operating temperature min.     -25 °C
Operating temperature max.     60 °C
Storage temperature min.     -40 °C
Storage temperature max.     85 °C
