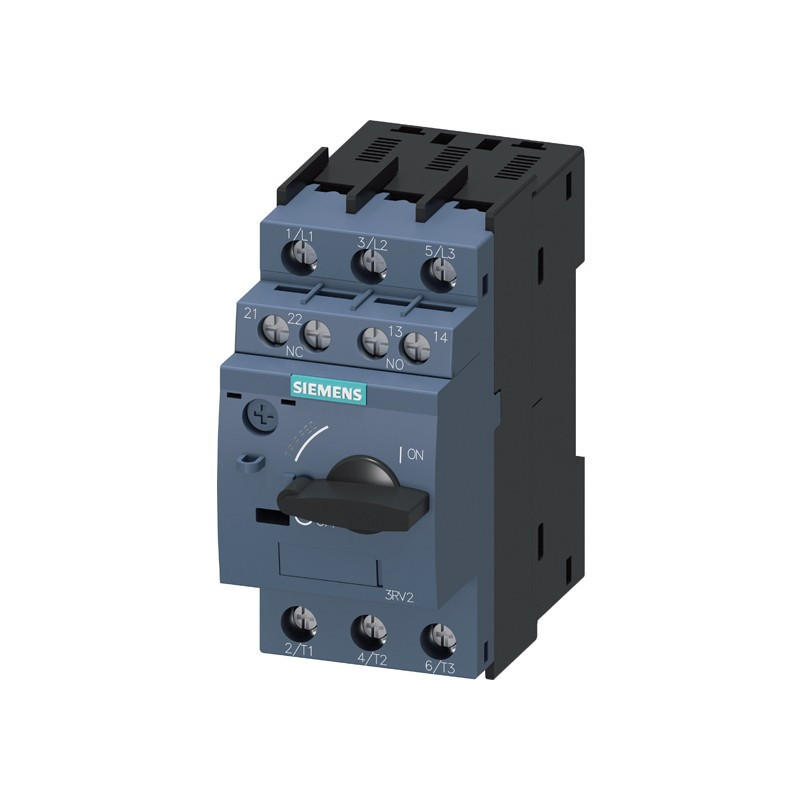

3RV2011-1BA15

product brand name     SIRIUS
product designation     Circuit breaker
design of the product     For motor protection
product type designation     3RV2
General technical data
size of the circuit-breaker     S00
size of contactor can be combined company-specific     S00, S0
product extension auxiliary switch     Yes
power loss [W] for rated value of the current
● at AC in hot operating state     7.25 W
● at AC in hot operating state per pole     2.4 W
insulation voltage with degree of pollution 3 at AC rated value     690 V
surge voltage resistance rated value     6 kV
shock resistance according to IEC 60068-2-27     25g / 11 ms
mechanical service life (operating cycles)
● of the main contacts typical     100 000
● of auxiliary contacts typical     100 000
electrical endurance (operating cycles) typical     100 000
reference code according to IEC 81346-2     Q
Substance Prohibitance (Date)     10/01/2009
SVHC substance name
Lead - 7439-92-1
Weight     0.355 kg
Ambient conditions
installation altitude at height above sea level maximum     2 000 m
ambient temperature
● during operation     -20 ... +60 °C
● during storage     -50 ... +80 °C
● during transport     -50 ... +80 °C
relative humidity during operation     10 ... 95 %
Environmental footprint
Environmental Product Declaration(EPD)     Yes
global warming potential [CO2 eq] total     74.698 kg
global warming potential [CO2 eq] during manufacturing     1.98 kg
global warming potential [CO2 eq] during sales     0.134 kg
global warming potential [CO2 eq] during operation     72.7 kg
global warming potential [CO2 eq] after end of life     -0.116 kg
Siemens Eco Profile (SEP)     Siemens EcoTech
Main circuit
number of poles for main current circuit     3
adjustable current response value current of the current-dependent overload release     1.4 ... 2 A
type of voltage for main current circuit     AC
operating voltage
● rated value     20 ... 690 V
● at AC-3 rated value maximum     690 V
● at AC-3e rated value maximum     690 V
operating frequency rated value     50 ... 60 Hz
operational current rated value     2 A
operational current
● at AC-3 at 400 V rated value     2 A
● at AC-3e at 400 V rated value     2 A
operating power
● at AC-3
— at 230 V rated value     0.4 kW
— at 400 V rated value     0.75 kW
— at 500 V rated value     0.8 kW
— at 690 V rated value     1.1 kW
● at AC-3e
— at 230 V rated value     0.4 kW
— at 400 V rated value     0.75 kW
— at 500 V rated value     0.8 kW
— at 690 V rated value     1.1 kW
operating frequency
● at AC-3 maximum     15 1/h
● at AC-3e maximum     15 1/h
Auxiliary circuit
design of the auxiliary switch     transverse
type of voltage for auxiliary and control circuit     AC/DC
number of NC contacts for auxiliary contacts     1
number of NO contacts for auxiliary contacts     1
number of CO contacts for auxiliary contacts     0
operational current of auxiliary contacts at AC-15
● at 24 V     2 A
● at 120 V     0.5 A
● at 125 V     0.5 A
● at 230 V     0.5 A
operational current of auxiliary contacts at DC-13
● at 24 V     1 A
● at 60 V     0.15 A
Protective and monitoring functions
product function
● ground fault detection     No
● phase failure detection     Yes
trip class     CLASS 10
design of the overload release     thermal
maximum short-circuit current breaking capacity (Icu)
● at AC at 240 V rated value     100 kA
● at AC at 400 V rated value     100 kA
● at AC at 500 V rated value     100 kA
● at AC at 690 V rated value     10 kA
operating short-circuit current breaking capacity (Ics) at AC
● at 240 V rated value     100 kA
● at 400 V rated value     100 kA
● at 500 V rated value     100 kA
● at 690 V rated value     10 kA
response value current of instantaneous short-circuit trip unit     26 A
UL/CSA ratings
full-load current (FLA) for 3-phase AC motor
● at 480 V rated value     2 A
● at 600 V rated value     2 A
yielded mechanical performance [hp]
● for single-phase AC motor
— at 230 V rated value     0.13 hp
● for 3-phase AC motor
— at 460/480 V rated value     1 hp
— at 575/600 V rated value     1 hp
contact rating of auxiliary contacts according to UL     C300 / R300
Short-circuit protection
product function short circuit protection     Yes
design of the short-circuit trip     magnetic
design of the fuse link
● for short-circuit protection of the auxiliary switch required     Fuse gL/gG: 10 A, miniature circuit breaker C 6 A (short-circuit current Ik < 400 A)
design of the fuse link for IT network for short-circuit protection of the main circuit
● at 400 V     gL/gG 25 A
● at 500 V     gL/gG 25 A
● at 690 V     gL/gG 20 A
Installation/ mounting/ dimensions
mounting position     any
fastening method     screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
height     97 mm
width     45 mm
depth     97 mm
required spacing
● with side-by-side mounting at the side     0 mm
● for grounded parts at 400 V
— downwards     30 mm
— upwards     30 mm
— at the side     9 mm
● for live parts at 400 V
— downwards     30 mm
— upwards     30 mm
— at the side     9 mm
● for grounded parts at 500 V
— downwards     30 mm
— upwards     30 mm
— at the side     9 mm
● for live parts at 500 V
— downwards     30 mm
— upwards     30 mm
— at the side     9 mm
● for grounded parts at 690 V
— downwards     50 mm
— upwards     50 mm
— backwards     0 mm
— at the side     30 mm
— forwards     0 mm
● for live parts at 690 V
— downwards     50 mm
— upwards     50 mm
— backwards     0 mm
— at the side     30 mm
— forwards     0 mm
Connections/ Terminals
type of electrical connection
● for main current circuit     screw-type terminals
● for auxiliary and control circuit     screw-type terminals
arrangement of electrical connectors for main current circuit     Top and bottom
type of connectable conductor cross-sections
● for main contacts
— solid or stranded     2x (0,75 ... 2,5 mm²), 2x 4 mm²
— finely stranded with core end processing     2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
● for AWG cables for main contacts     2x (18 ... 14), 2x 12
type of connectable conductor cross-sections
● for auxiliary contacts
— solid or stranded     2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
— finely stranded with core end processing     2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
● for AWG cables for auxiliary contacts     2x (20 ... 16), 2x (18 ... 14)
tightening torque
● for main contacts with screw-type terminals     0.8 ... 1.2 N·m
● for auxiliary contacts with screw-type terminals     0.8 ... 1.2 N·m
design of screwdriver shaft     Diameter 5 to 6 mm
size of the screwdriver tip     Pozidriv size 2
design of the thread of the connection screw
● for main contacts     M3
● of the auxiliary and control contacts     M3
Safety related data
product function suitable for safety function     Yes
suitability for use
● safety-related switching on     No
● safety-related switching OFF     Yes
service life maximum     10 a
test wear-related service life necessary     Yes
proportion of dangerous failures
● with low demand rate according to SN 31920     40 %
● with high demand rate according to SN 31920     50 %
B10 value with high demand rate according to SN 31920     5 000
failure rate [FIT] with low demand rate according to SN 31920     50 FIT
ISO 13849
device type according to ISO 13849-1     3
overdimensioning according to ISO 13849-2 necessary     Yes
IEC 61508
safety device type according to IEC 61508-2     Type A
T1 value
● for proof test interval or service life according to IEC 61508     10 a
Electrical Safety
protection class IP on the front according to IEC 60529     IP20
touch protection on the front according to IEC 60529     finger-safe, for vertical contact from the front
Display
display version for switching status     Handle
