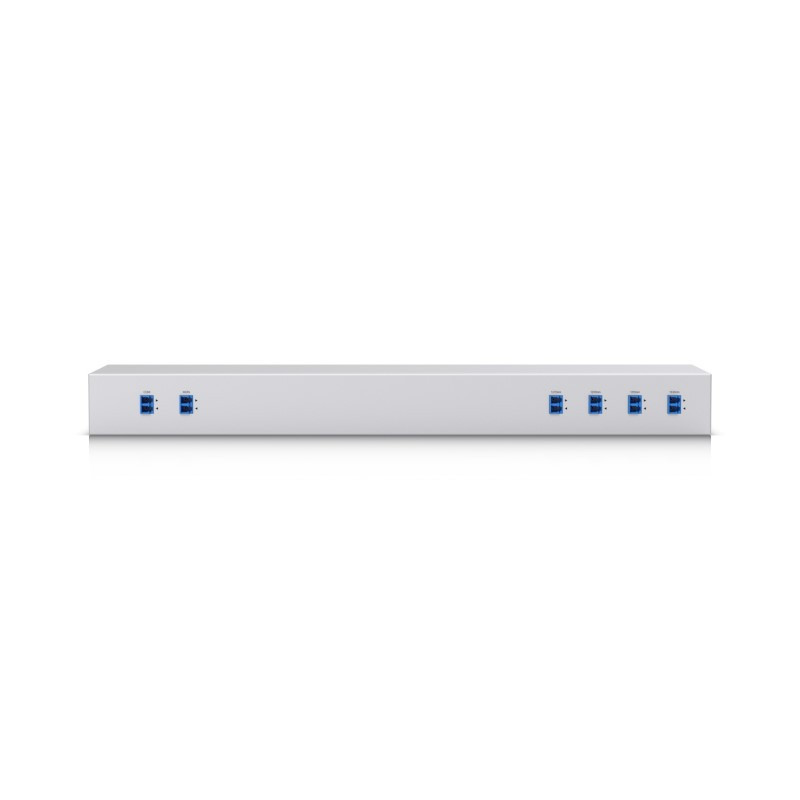

CWDM Mux Demux 4
1.008,00 lei
Include TVA
Livrare in 5-7 zile lucratoare
Rack-mountable 4-channel 1270 to 1330 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.
(4) 1270 to 1330 nm channel ports
(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 4 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
Compatibility:
Taxa Timbru Verde
este inclusa in pretul produsului
| Mechanical | |
|---|---|
| Dimensions | 442 x 120 x 43.7 mm |
| Weight | 1.4 kg |
| Enclosure material | Metal |
| Hardware | |
| Connector type | (1) COM (LC/UPC) (1) MON (LC/UPC) (1) 1270 to 1330 nm (LC/UPC) |
| Pigtail and connector type | 0.9 mm white LC/UPC |
| Fiber type | SMF-28e |
| Fiber length | ≥0.5 to 1 m |
| Channel count | 4 CH Mux/Demux |
| Channel center wavelength | 1270/1290/1310/1330 nm |
| Min. channel passband | ±6.5 nm |
| Max. insertion loss | <1.5 dB |
| Isolation | Adjacent channel: Max. 30 dB Non-Adjacent channel: Min. 40 dB |
| Max. passband ripple | 0.3 dB |
| Max. Polarization Dependent Loss | 0.1 dB |
| Min. directivity | 55 dB |
| Min. return loss | 50 dB |
| Max. polarization mode dispersion | 0.1 ps |
| Max. power handling | 500 mW |
| Storage temperature | -40 to 90°C |
| Ambient operating temperature | -30 to 75°C |
UACC-CWDM-4
