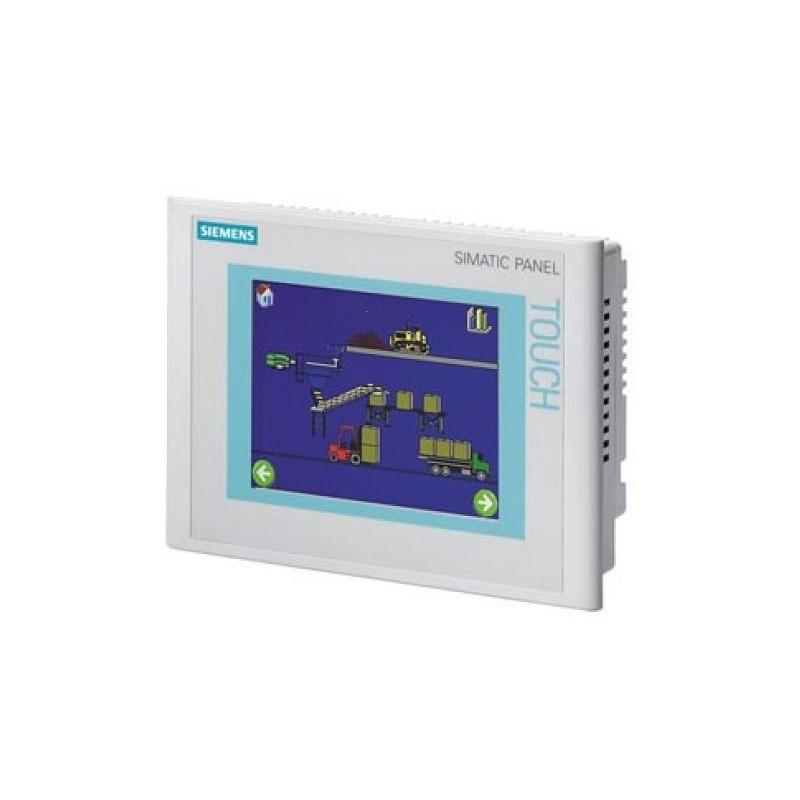

6AV6642-0BA01-1AX1
Ofertă la cerere!
Include TVA
Livrare in 5-7 zile lucratoare
Taxa Timbru Verde
este inclusa in pretul produsului
| General information | ||
| Product type designation | TP177B 6" PN/DP Color | |
| Customer-specific configuration | Yes | |
| Display | ||
| Design of display | STN | |
| Screen diagonal | 5.7 in | |
| Color display | Yes | |
| Number of colors | 256 | |
| Resolution (pixels) | ||
| ● Horizontal image resolution | 320 pixel | |
| ● Vertical image resolution | 240 pixel | |
| Backlighting | ||
| ● MTBF backlighting (at 25 °C) | 50 000 h | |
| Control elements | ||
| Control elements | Touch screen | |
| Keyboard fonts | ||
| ● System keys | Yes | |
| ● Numeric keyboard | Yes | |
| ● alphanumeric keyboard | Yes | |
| ● hexadecimal keyboard | Yes | |
| ● Multi-key operation | No | |
| Touch operation | ||
| ● Design as touch screen | Yes; analog, resistive | |
| Connection type | ||
| ● Type of connection for mouse/keyboard/barcode reader | USB / USB / USB | |
| Installation type/mounting | ||
| Mounting position | vertical | |
| maximum permissible angle of inclination without external ventilation | 35° | |
| Supply voltage | ||
| Type of supply voltage | DC | |
| Input current | ||
| Current consumption (rated value) | 0.24 A | |
| Starting current inrush I²t | 0.5 A²·s | |
| Processor | ||
| Processor type | ARM, 200 MHz | |
| Memory | ||
| Type of memory | Flash / RAM | |
| Memory available for user data | 2 048 kbyte | |
| Time of day | ||
| Clock | ||
| ● Type | Hardware clock, synchronizable, no battery backup | |
| ● retentive | No | |
| ● synchronizable | Yes | |
| Interfaces | ||
| Interfaces/bus type | RS 232 optional, 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) (max. 12 Mbit/s) | |
| Number of industrial Ethernet interfaces | 1 | |
| Number of RS 485 interfaces | 1 | |
| Number of RS 422 interfaces | 1 | |
| Number of USB interfaces | 1; Up to 1 GB | |
| PC card slot | No | |
| CF card slot | No | |
| Multimedia card/SD card slot | combined, from E-status 016 in connection with WinCC flexible 2008 SP1, MMC max. 128 MB / SD max. 512 MB | |
| With software interfaces | No | |
| Protocols | ||
| Supports protocol for PROFINET IO | Yes | |
| PROFIsafe | No | |
| PROFIBUS | Yes | |
| EtherNet/IP | Yes | |
| Protocols (Ethernet) | ||
| ● TCP/IP | Yes | |
| Protocols (terminal link) | ||
| ● Sm@rtServer | Yes | |
| Further protocols | ||
| ● MODBUS | Yes | |
| Degree and class of protection | ||
| IP (at the front) | IP65 | |
| IP (rear) | IP20 | |
| NEMA (front) | NEMA 4x, NEMA 12 (when installed) | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| UL approval | Yes | |
| cULus | Yes | |
| EAC (formerly Gost-R) | No | |
| Suitable for safety functions | No | |
| Use in hazardous areas | ||
| ● ATEX Zone 2 | No; certificate no longer available as of 1 October 2020 | |
| ● ATEX Zone 22 | No; certificate no longer available as of 1 October 2020 | |
| ● FM Class I Division 2 | Yes | |
| Marine approval | ||
| ● Germanischer Lloyd (GL) | Yes; only valid up to and including the HW release (see MLFB release notes in SIOS)! | |
| ● American Bureau of Shipping (ABS) | Yes; only valid up to and including the HW release (see MLFB release notes in SIOS)! | |
| ● Bureau Veritas (BV) | Yes; only valid up to and including the HW release (see MLFB release notes in SIOS)! | |
| ● Det Norske Veritas (DNV) | Yes; only valid up to and including the HW release (see MLFB release notes in SIOS)! | |
| ● Lloyds Register of Shipping (LRS) | Yes; only valid up to and including the HW release (see MLFB release notes in SIOS)! | |
| ● Polski Rejestr Statkow (PRS) | No; only valid up to and including the HW release (see MLFB release notes in SIOS)! | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| ● min. | 0 °C | |
| ● max. | 50 °C | |
| Ambient temperature during storage/transportation | ||
| ● min. | -20 °C | |
| ● max. | 60 °C | |
| Relative humidity | ||
| ● Operation, max. | 90 % | |
| Operating systems | ||
| pre-installed operating system | Windows CE | |
| configuration / header | ||
| Message indicator | Yes | |
| Alarm system (incl. buffer and acknowledgment) | Yes | |
| Process value display (output) | Yes | |
| Process value default (input) possible | Yes | |
| Recipe management | Yes | |
| Configuration software | ||
| ● Configuration tool | WinCC flexible Compact Version 2005 or higher (to be ordered separately) | |
| ● STEP 7 Basic (TIA Portal) | No | |
| ● STEP 7 Professional (TIA Portal) | No | |
| ● WinCC flexible Compact | Yes | |
| ● WinCC flexible Standard | Yes | |
| ● WinCC flexible Advanced | Yes | |
| ● WinCC Basic (TIA Portal) | No | |
| ● WinCC Comfort (TIA Portal) | Yes | |
| ● WinCC Advanced (TIA Portal) | Yes | |
| ● WinCC Professional (TIA Portal) | Yes | |
| Languages | ||
| Online languages | ||
| ● Number of online/runtime languages | 5 | |
| Project languages | ||
| ● Languages per project | 32 | |
