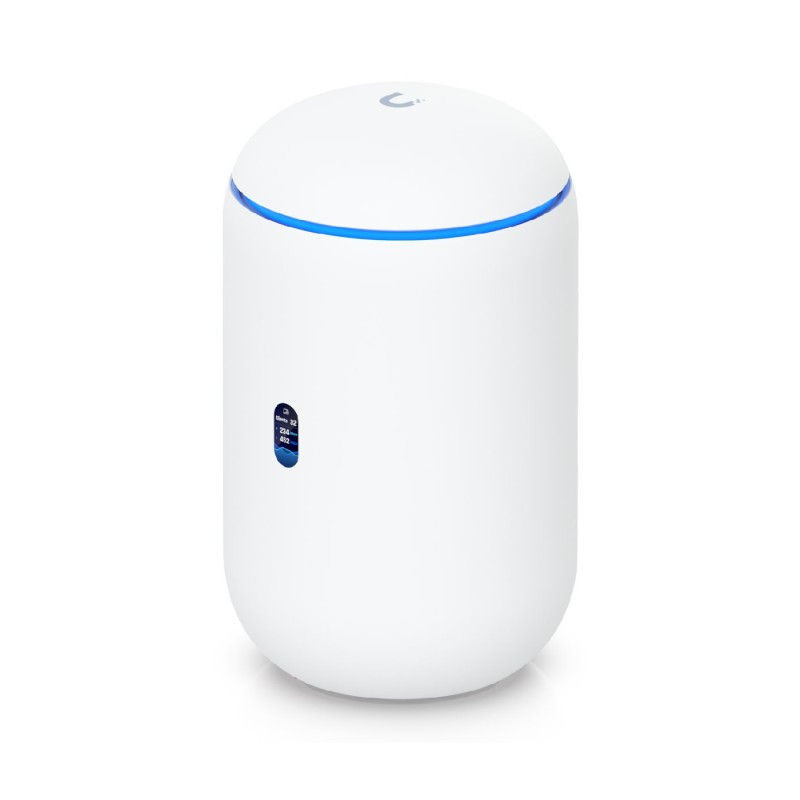

Dream Router 7

Dimensions Ø110 x 184.1 mm
UniFi Application Suite
Network ✓
Protect ✓
Access ✓
Talk ✓
Connect ✓
Managed UniFi Devices 30+
Managed Cameras
(5) HD
(2) 2K
(1) 4K
Simultaneous Users Connected 300+
Max. WAN Port Count 4
Default WAN Ports
(1) 10G SFP+
(1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45
4 (1 PoE) (2.5G/1G/100M/10M)
10G SFP+
1 (10G/1G)
IDS/IPS Throughput 2.3 Gbps
Form Factor Compact desktop
Coverage Area 160 m²
Stateful Firewall ✓
Application-Aware Layer 7 Firewall ✓
DPI & Traffic Identification ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓
Content Filtering ✓
Intrusion Prevention (IPS/IDS) ✓
Ad Blocking ✓
IDS/IPS Signatures 20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation ✓
License-Free SD-WAN ✓
Site-to-Site VPN
Site Magic ✓
IPsec ✓
OpenVPN ✓
VPN Server
Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
OpenVPN ✓
L2TP ✓
VPN Client
OpenVPN ✓
WireGuard ✓
Multi-WAN Load Balancing ✓
Dynamic Routing
OSPF ✓
Advanced QoS ✓
Multicast DNS (mDNS) ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
Integrated RADIUS Server ✓
RADIUS over TLS (RadSec) ✓
Additional Internet Failover with UniFi LTE Backup ✓
Internet Quality and Outage Reporting ✓
MAC Address Table Size 2,000
Policy-based WAN and VPN Routing ✓
Customizable DHCP Server ✓
IPv6 ISP Support ✓
IGMP Proxy ✓
WiFi Standard 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput
6 GHz 5.7 Gbps
5 GHz 4.3 Gbps
2.4 GHz 688 Mbps
MIMO
6 GHz 2 x 2 (DL/UL MU-MIMO)
5 GHz 2 x 2 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Antenna Gain
6 GHz 6 dBi
5 GHz 7 dBi
2.4 GHz 5 dBi
Max. TX Power
6 GHz 24 dBm
5 GHz 26 dBm
2.4 GHz 23 dBm
Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs 4 per Radio
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
NVR Storage Pre-installed 64GB microSD for NVR
Expansion Slot MicroSD Card
PoE Budget 15.4W
Max. PoE Wattage per Port by PSE
PoE 15.4W
Voltage Range PoE Mode 44-57V
Max. Power Consumption 26W (Excluding PoE output)
Power Method Universal AC input, 100—240VAC, 1.5A Max, 50/60 Hz
Power Supply AC/DC, Internal, 50W
Supported Voltage Range 100—240V AC
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory 3 GB
Weight 1.1 kg
Enclosure Material Polycarbonate
LCM Display 0.96" status display
Management Ethernet Bluetooth
LEDs
System ✓
Button (1) Factory-reset
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature -10 to 40° C
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC
VLAN 802.1Q
Guest Traffic Isolation ✓
Application Requirements UniFi Network Version 9.0.108 and later
