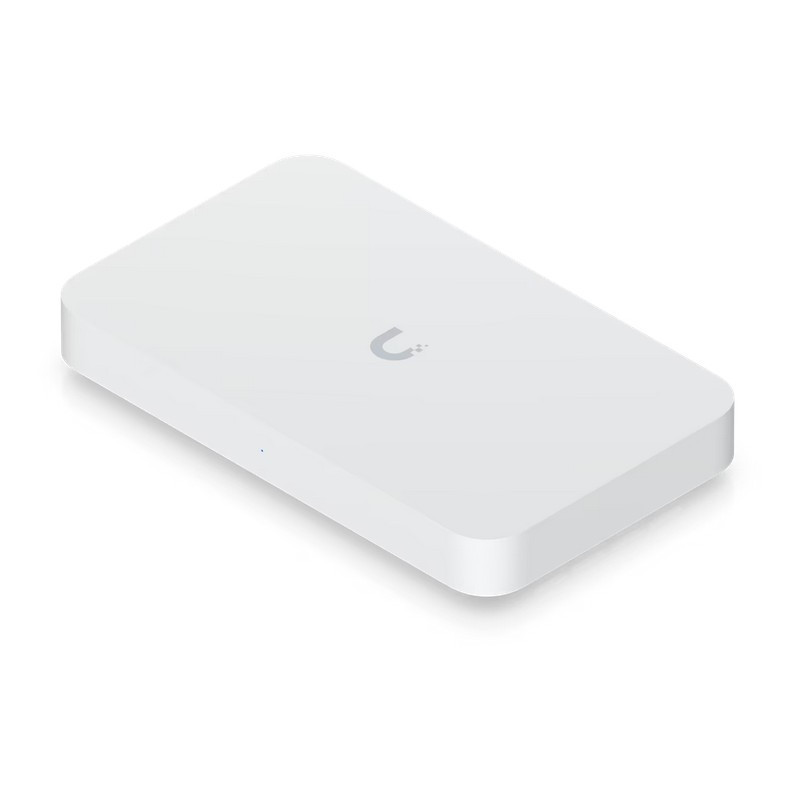

Gateway Fiber

Dimensions 212.8 x 127.6 x 30 mm
Max. WAN Port Count 6
Default WAN Ports
(1) 10G SFP+
(1) 10 GbE RJ45
Port Layout
2.5 GbE RJ45 4 (2.5G/1G/100M/10M)
10 GbE RJ45 1 (10G/2.5G/1G)
10G SFP+ 2 (10G/1G)
IDS/IPS Throughput 5 Gbps
Form Factor Compact desktop
Stateful Firewall ✓
Application-Aware Layer 7 Firewall ✓
DPI & Traffic Identification ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓
Content Filtering ✓
Intrusion Prevention (IPS/IDS) ✓
Ad Blocking ✓
IDS/IPS Signatures 55,000+  With CyberSecure
License-Free SD-WAN ✓
Site-to-Site VPN
Site Magic ✓
IPsec ✓
OpenVPN ✓
VPN Server Teleport Zero-Configuration VPN ✓
WireGuard ✓
OpenVPN ✓
L2TP ✓
VPN Client
OpenVPN ✓
WireGuard ✓
Multi-WAN Load Balancing ✓
Dynamic Routing
OSPF ✓
Advanced QoS ✓
Multicast DNS (mDNS) ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
Integrated RADIUS Server ✓
RADIUS over TLS (RadSec) ✓
Additional Internet Failover with UniFi LTE Backup ✓
Internet Quality and Outage Reporting ✓
MAC Address Table Size 4,000
Virtual Network Override ✓
All Traffic Flows ✓
PoE Budget 30W
Max. PoE Wattage per Port by PSE PoE+ 30W
Voltage Range PoE Mode 50–57V
Max. Power Consumption 25W (Excluding PoE output)
Power Method DC jack (54V DC/1.1A)
Power Supply 54V DC/1.1A (Adapter included)
Supported Voltage Range 100–240V AC
Heat Dissipation 85 BTU/hr  (Excluding PoE output)
Processor Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory 2 GB
Weight 605 g
Enclosure Material Polycarbonate
Management
Ethernet
Bluetooth
LEDs
Ethernet ✓
SFP+ ✓
System ✓
Button (1) Factory reset
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature 0 to 40° C
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel: 04395-25-08356
