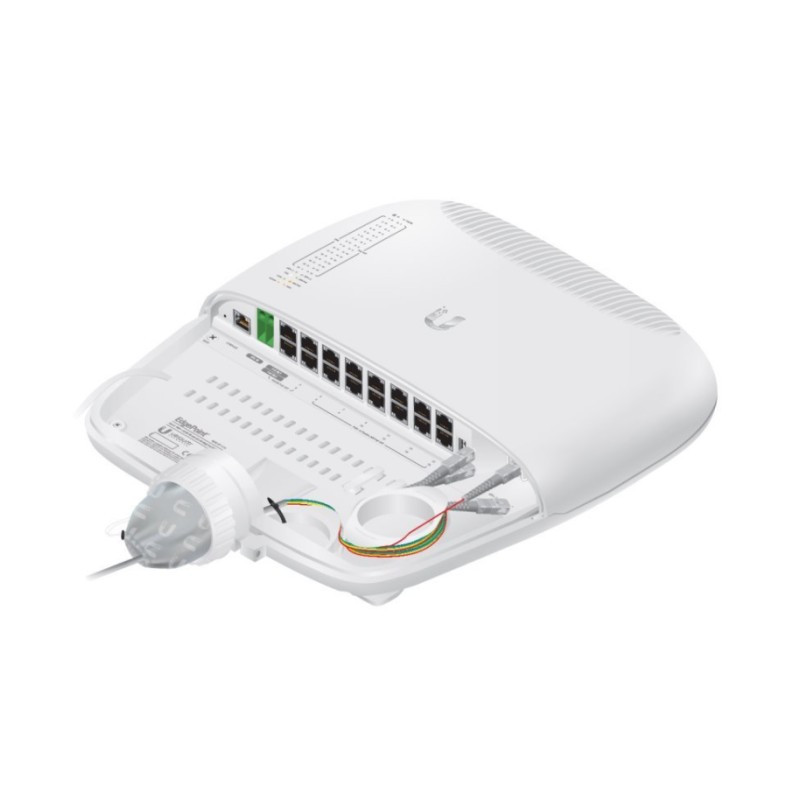

EdgePoint S16

Dimensions    Without wall-mount: 326.6 x 382.7 x 88.8 mm
With wall-mount: 326.6 x 382.7 x 105.5 mm
Weight    Without wall-mount: 3.4 kg
With wall-mount: 3.8 kg
Enclosure material    Diecast aluminum alloy, UV-resistant polycarbonate
Mount    Pole/wall mount
Wind loading    153 N at 200 km/h
Wind survivability    200 km/h
Networking interface    (1) RJ45 serial port
(16) 10/100/1000 RJ45 ports
(2) 1/10 Gbps SFP+ ports
Power method*    (1) DC terminal block 54V DC, 6A input
*Self-correcting polarity protection on DC terminal block only, diode red protection on all power inputs.
Power supply    Min. 54V / 0.8A (Excludes PoE output)
Passive PoE input*    (2) 54V / 1.5A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 and 2
*Do NOT configure port 1 or 2 in PoE output mode if you are using PoE input power sources.
Passive PoE output    (4) 54V or 24V /1.4A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 to 4
(12) PoE/PoE+ or 24V/0.7A, 2-pair (+ 4, 5; - 7, 8) passive PoE, ports 5 to 16
Power monitoring    (1) DC terminal block, input power
(2) RJ45, ports 1 and 2, PoE input or output power
(14) RJ45, ports 3 to 16, PoE output power
Supported voltage range    42–56V DC (-48V is NOT supported)
Max. power consumption    40W (Excludes PoE output)
Button    Factory reset
LEDs    System: power
RJ45 ports: speed/link/activity, PoE
SFP ports: speed/link/activity
Ambient operating temperature    -40 to 65°C
Ambient operating humidity    10 to 90% noncondensing
Certifications    CE, FCC, IC
NDAA Compliant    Yes
