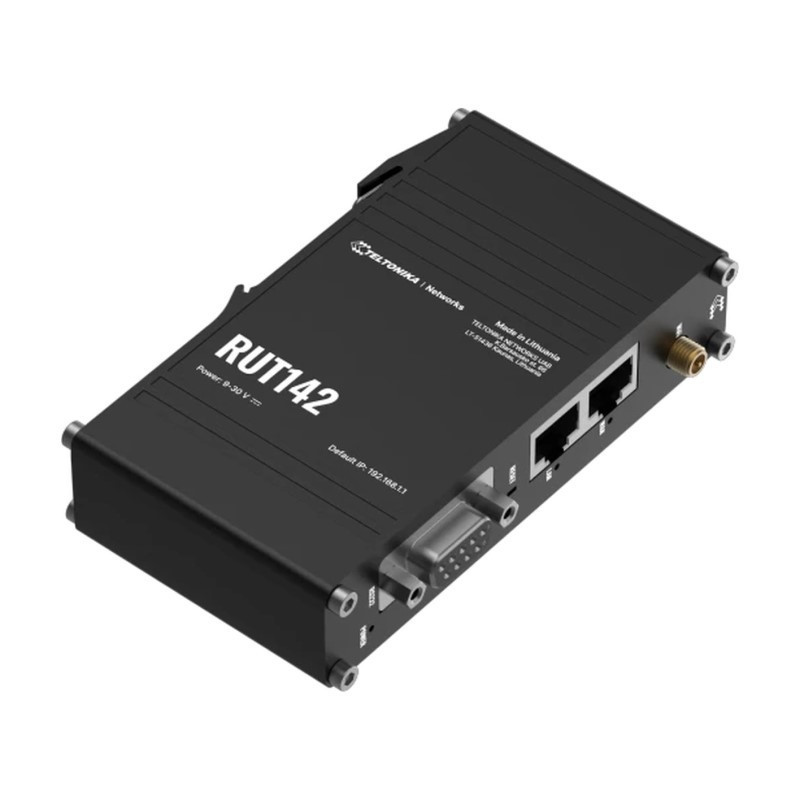

RUT142 RS232 Industrial Router

RS232 INDUSTRIAL ROUTER
The RUT142 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with the RS232 serial interface, two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.

Wireless

    Wireless mode

    802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

    Wi-Fi security

    WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect

    SSID/ESSID

    ESSID stealth mode

    Wi-Fi users

    Up to 50 simultaneous connections

    Wireless Connectivity Features

    Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

    Wireless MAC filter

    Whitelist, blacklist

    Wireless QR code generator

    Once scanned, a user will automatically enter your network without needing to input login information.

Ethernet

    WAN

    1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

    LAN

    1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

    Routing

    Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

    Network protocols

    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

    VoIP passthrough support

    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

    Connection monitoring

    Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

    Firewall

    Port forward, traffic rules, custom rules

    Firewall status page

    View all your Firewall statistics, rules, and rule counters

    Ports management

    View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

    Network topology

    Visual representation of your network, showing which devices are connected to which other devices

    DHCP

    Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

    QoS / Smart Queue Management (SQM)

    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

    DDNS

    Supported >25 service providers, others can be configured manually

    DNS over HTTPS

    DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

    Network backup

    Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover

    Load balancing

    Balance Internet traffic over multiple WAN connections

    Hotspot

    Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

    SSHFS

    Possibility to mount remote file system via SSH protocol

Security

    Authentication

    Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

    Firewall

    Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

    Attack prevention

    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

    VLAN

    Port and tag-based VLAN separation

    WEB filter

    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

    Access control

    Flexible access control of SSH, Web interface, CLI and Telnet

    SSL certificate generation

    Let's encrypt support

VPN

    OpenVPN

    Multiple clients and a server can run simultaneously, 27 encryption methods

    OpenVPN Encryption

    DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

    BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

    IPsec

    XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

    GRE

    GRE tunnel, GRE tunnel over IPsec support

    PPTP, L2TP

    Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

    Stunnel

    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

    DMVPN

    Method of building scalable IPsec VPNs

    SSTP

    SSTP client instance support

    ZeroTier

    ZeroTier VPN client support

    WireGuard

    WireGuard VPN client and server support

    Tinc

    Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA

    Supported modes

    Client, Server

    Supported connection types

    TCP

MODBUS

    Supported modes

    Server, Client

    Supported connection types

    TCP, RTU(RS232)

    Custom registers

    MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

    Supported data formats

    8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

    Protocol

    HTTP(S), MQTT, Azure MQTT

    Data to server

    Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

    Modbus MQTT Gateway

    Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

    Supported modes

    Station, Outstation

    Supported connection

    TCP, RTU(RS232)

DLMS

    DLMS Support

    DLMS - standard protocol for utility meter data exchange

    Supported modes

    Client

    Supported connection types

    TCP, RTU(RS232)

API

    Teltonika Networks Web API (beta) support

    Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

    WEB UI

    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

    FOTA

    Firmware update from server, automatic notification

    SSH

    SSH (v1, v2)

    Email

    Receive email message status alerts of various services

    TR-069

    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

    MQTT

    MQTT Broker, MQTT publisher

    SNMP

    SNMP (v1, v2, v3), SNMP Trap, Brute force protection

    JSON-RPC

    Management API over HTTP/HTTPS

    RMS

    Teltonika Remote Management System (RMS)

IoT Platforms

    Cloud of Things

    Allows monitoring of: Device name, HW version, Serial number, FW version, WAN IP. Allows actions from the cloud: FW update, Reboot

    Cumulocity

    Allows monitoring of: Device name, HW version, Serial number, FW version, WAN IP. Allows actions from the cloud: FW update, Reboot

    Azure IoT Hub

    Allows monitoring of: Wan IP, Number of bytes send/received, Model, Manufacturer, Serial, Revision, FW version and collected data of industrial devices

System Characteristics

    CPU

    Mediatek, 580 MHz, MIPS 24KEc

    RAM

    128 MB, DDR2

    FLASH storage

    16 MB serial NOR flash

Firmware / Configuration

    WEB UI

    Update FW from file, check FW on server, configuration profiles, configuration backup

    FOTA

    Update FW

    RMS

    Update FW/configuration for multiple devices at once

    Keep settings

    Update FW without losing current configuration

    Factory settings reset

    A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

    Operating system

    RutOS (OpenWrt based Linux OS)

    Supported languages

    Busybox shell, Lua, C, C++

    Development tools

    SDK package with build environment provided

    GPL customization

    You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

    Package Manager

    The Package Manager is a service used to install additional software on the device

Power

    Connector

    3-pos plugable terminal block

    Input voltage range

    9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max

    PoE (passive)

    Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

    Power consumption

    Idle: < 1 W / Max: < 2 W

Physical Interfaces

    Ethernet

    2 x RJ45 ports, 10/100 Mbps

    Status LEDs

    1 x WAN type LED, 1 x LAN type LED, 1 x Power LED

    Power

    1 x 3-pin power connector

    Antennas

    1 x RP-SMA for Wi-Fi

    RS232

    1 x DB9 socket

    Reset

    Reboot/User default reset/Factory reset button

    Other


    1 x Grounding screw

Physical Specification

    Casing material

    Aluminium housing

    Dimensions (W x H x D)

    113.10 x 25 x 68.6 mm

    Weight

    149.2 g

    Mounting options

    Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

    Operating temperature

    -40 °C to 75 °C

    Operating humidity

    10% to 90% non-condensing

    Ingress Protection Rating

    IP30

Regulatory & Type Approvals

    Regulatory

    CE, UKCA, FCC, IC, CB, WEEE, RoHS, REACH

EMC Emissions & Immunity

    Standards

    EN 55032:2015 + A11:2020 + A1:2020

    EN 55035:2017 + A11:2020

    EN 301 489-1 V2.2.3

    EN 301 489-17 V3.2.4

    ESD

    EN 61000-4-2:2009

    Radiated Immunity

    EN IEC 61000-4-3:2020

    EFT

    EN 61000-4-4:2012

    Surge immunity (Ethernet ports)

    EN 61000-4-5:2014 +A1:2017

    CS

    EN 61000-4-6:2014

RF

    Standards

    EN 300 328 V2.2.2

Safety

    Standards

    CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020

    CB: IEC 62368-1:2018
