A9F75110
Ofertă la cerere!
Include TVA
Livrare in 5-7 zile lucratoare

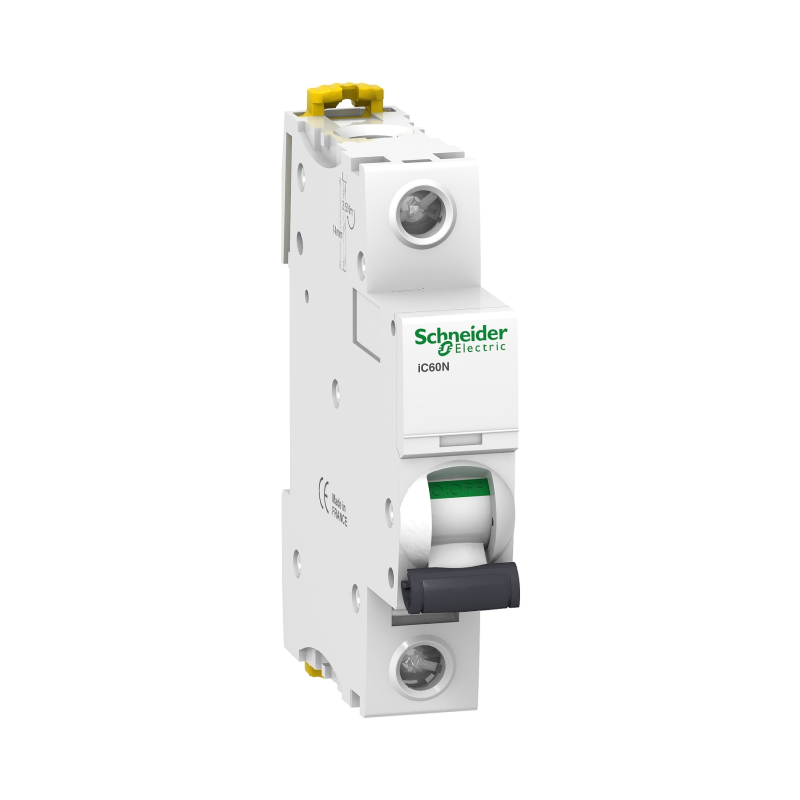

Miniature circuit-breaker, Acti9 iC60N, 1P, 10 A, D curve, 6000 A (IEC 60898-1), 10 kA (IEC 60947-2).
Taxa Timbru Verde
este inclusa in pretul produsului
| device application |
Distribution
|
|
|---|---|---|
| range |
Acti 9
|
|
| product name |
Acti 9 iC60
|
|
| product or component type |
Miniature circuit-breaker
|
|
| device short name |
IC60N
|
|
| poles description |
1P
|
|
| number of protected poles |
1
|
|
| [In] rated current |
10 A
|
|
| network type |
AC
DC |
|
| trip unit technology |
Thermal-magnetic
|
|
| curve code |
D
|
|
| breaking capacity |
6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2 |
|
| utilisation category |
Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2 |
|
| suitability for isolation |
Yes conforming to EN 60898-1
Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 |
|
| standards |
IEC 60947-2
EN 60898-1 IEC 60898-1 EN 60947-2 |
A9F75110
