Dimensions
Device with wall mount: 93.5 x 22.5 x 24.7 mm Device with corner mount: 93.5 x 22.5 x 27.9 mm
Enclosure Material Polycarbonate, high-density polyethylene (HDPE)
Mount Material Polycarbonate
Mounting Adhesive and screw mount
Connectivity SuperLink (Proprietary)
Power Method Lithium battery CR123A
Supported Voltage Range 3V
Max. Power Consumption 22.6mW
Antenna Gain SuperLink 1 dBi
Max. TX Power SuperLink 14 dBm
Max. Range SuperLink 2 km
LEDs (1) Status: R/B/W (1) Signal: B/R
Buttons (1) Factory-reset (1) Function button
Ambient Operating Temperature 0 to 40° C
Ambient Operating Humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
Application Requirements
Web Application UniFi Protect
Mobile App UniFi Protect iOS™ and Android™

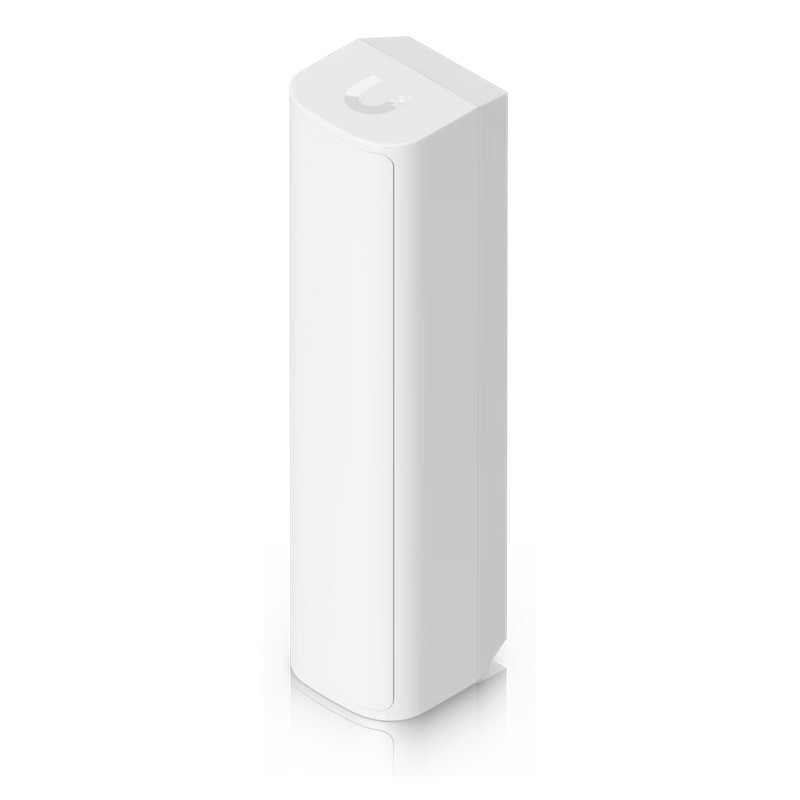

USL-Motion
