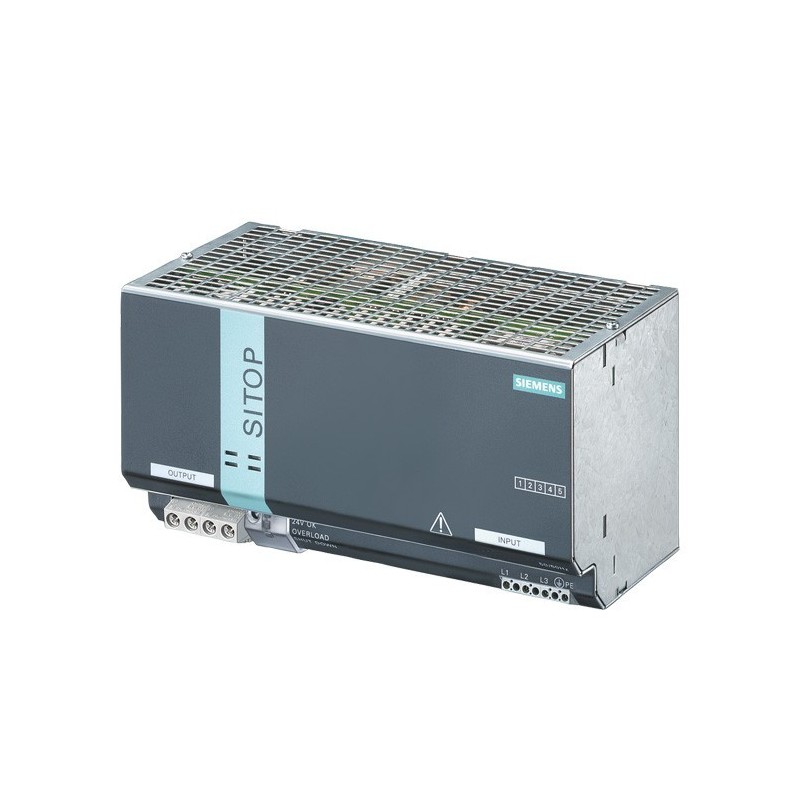

6EP1337-3BA00
2.023,45 lei
Include TVA
Livrare in 5-7 zile lucratoare
SITOP MODULAR 40
STABILIZED POWER SUPPLY
INPUT: 120/230 V AC
OUTPUT: 24 V DC/40 A
Taxa Timbru Verde
este inclusa in pretul produsului
SITOP MODULAR 40, STABILIZED POWER SUPPLY, INPUT: 120/230 V AC, OUTPUT: 24 V DC/40 A
- PSU, SITOP MODULAR, 24V/40A
- Output Voltage Fixed: 24V DC
- Output Current: 40A
- Power Rating: 960W
- Approval Bodies: CE, TÜV, UL508, CSA 22.2 No.14-M91, File E197259
- External Depth: 125mm
- External Length / Height: 125mm
- External Width: 240mm
- Accuracy %: 88%
- Efficiency: 88%
- Frequency Max: 60Hz
- Frequency Min: 50Hz
- IP / NEMA Rating: IP20
- Input Current: 15A
- Line Regulation: 0.1%
- Load Regulation: 0.1%
- Operating Temperature Max: +60°C
- Output Voltage Max: 28.8V DC
- Output Voltage Min: 24V DC
- Protection Type: Class I
- Supply Voltage: 230V AC
- Supply Voltage Max: 264V AC
- Supply Voltage Min: 85V AC
- Temperature Operating Min: 0°C
- Tolerance: 3%
- Weight: 2.9kg
6EP1337-3BA00
Fisa tehnica
- Curent Iesire
- 40A
- Tensiune Iesire
- 24V
