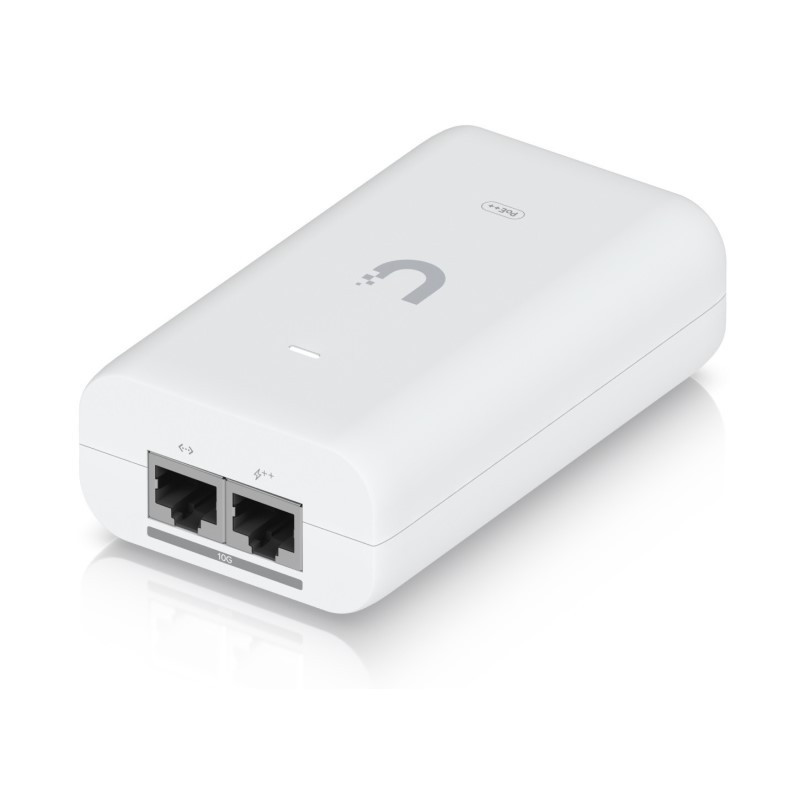

10G PoE++ Adapter 60W
212,00 lei
Include TVA
Livrare in 24-48 ore
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Taxa Timbru Verde
este inclusa in pretul produsului
| Dimensions | 106 x 63 x 34 mm |
| Weight | 210 g |
| Output voltage | 54V DC @ 1.12A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes, up to 10 GbE |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 1.5A max. |
| Inrush current | <150A peak @ 230V AC |
| Efficiency | >88% |
| Output ripple | 1% max. |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 2% |
| Load regulation | ≤ 5% |
| 2-pair powering | No |
| 4-pair powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Max. PoE+ wattage per port by PSE | 60W |
| Ambient operating temperature | 0 to 40°C |
| Storage temperature | -30 to 70°C |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
UACC-PoE++-10G
1 bucata
Fisa tehnica
- Capacitate LAN
- 10 Gbps
- Curent Iesire
- 1.12A
- Tensiune Iesire
- 54V
