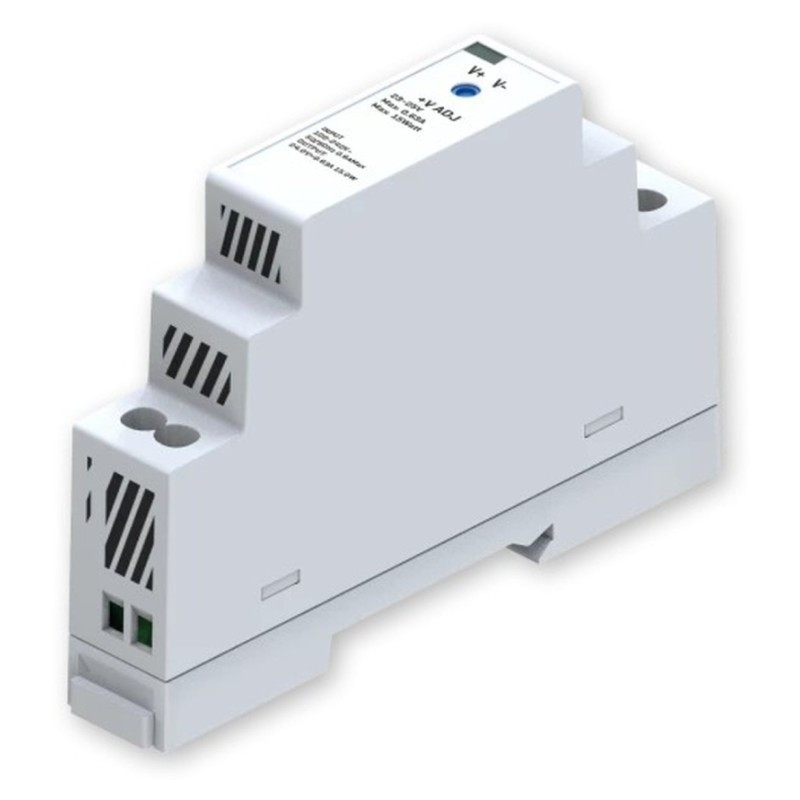

DIN Rail Power Supply 15W 24V
61,00 lei
Include TVA
Livrare in 5-7 zile lucratoare
Taxa Timbru Verde
este inclusa in pretul produsului
Input voltage 90 – 264 VAC
Input frequency50/60 Hz
Input current 0.5 A
Output voltage 24 VDC
Output current 0.63 A
Input voltage absolute maximum 85 – 264 VAC
Input frequency absolute maximum 47 – 63 Hz
Inrush currect 45 A
Output voltage absolute maximum 21.6 – 29 VDC
Short circuit protection ✓
HIPOT (dielectric withstand test) – Primary to Secondary 3 kVAC
Input connector Screw terminal
Output connector Screw terminal
Weight 78 g
Certification
Safety: EN 62368-1:2014+A11:2017, BS EN 62368-1:2014+A11:2017
EMC: EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, BS EN 55032:2015+A11:2020, BS EN 55035:2017+A11:2020, BS EN IEC 61000-3-2:2019+A1:2021, BS EN 61000-3-3:2013+A1:2019
PR321NP0
Fisa tehnica
- Curent Iesire
- 0.63A
- Tensiune Iesire
- 24V
