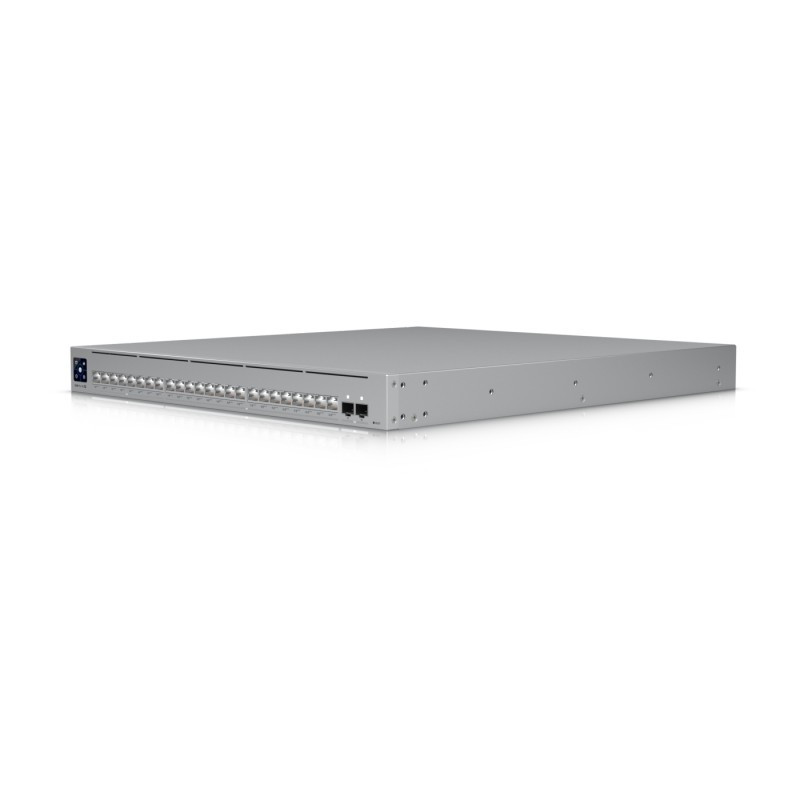

Pro XG 24 PoE

Dimensions 442 x 480 x 44 mm
Port Layout
2.5 GbE RJ45 8 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28 2 (25G/10G/1G)
Max. PoE Output Up to PoE+++
Total PoE Availability 720W
Redundancy DC Power Backup
Layer 3 ✓
Form Factor Rack mount (1U)
Etherlighting™ ✓
Switching Capacity 460 Gbps
Total Non-Blocking Throughput 230 Gbps
Forwarding Rate 342 Mpps
Supported VLANs 1,000
MAC Address Table Size 128,000
L3 Table Size ARP Entries 128,000
IPv4 Routes 256,000
Packet Buffer Size 8 MB
DHCP Server (Local Networks) ✓
DHCP Relay ✓
Inter-VLAN Routing (Local Networks) ✓
Static Routing (Local Networks) ✓
LACP Port Aggregation ✓
STP & RSTP ✓
QoS (DSCP) ✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓
PoE Ports PoE+++ 24
Max. PoE Wattage per Port by PSE
PoE 15.4W
PoE+ 30W
PoE++ 60W
PoE+++ 90W
Max. Power Consumption
150W (Excluding PoE Output)
870W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method AC input
Power Supply AC/DC, internal, 870W
Supported Voltage Range 100—240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 7.9 kg
With mounting brackets: 8 kg
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 482.6 mm four-post racks
Posts depths ranging from 600 to 1,066 mm
LCM Display 1.3" touchscreen
ESD/EMP Protection Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature -5 to 40° C
Ambient Operating Humidity10 to 90% noncondensing
Etherlighting™
Ethernet ✓
SFP28 ✓
LEDs
RPS ✓
Certifications CE, FCC, IC
NDAA Compliant ✓
Application Requirements UniFi Network Version 9.1.120 and later
