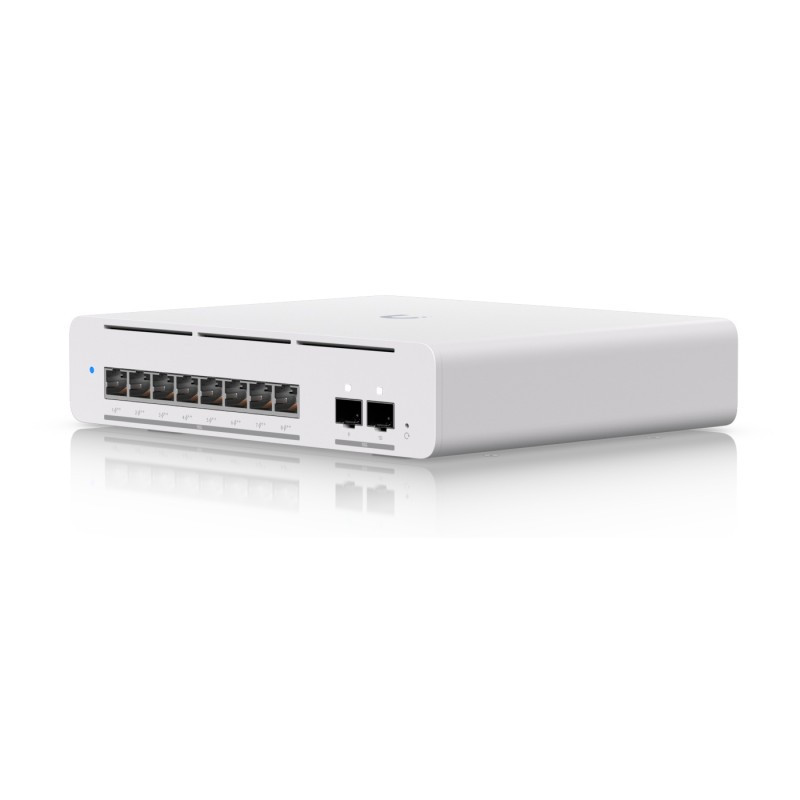

Pro XG 8 PoE

Dimensions 210.4 x 173.8 x 43.7 mm
Port Layout
10 GbE RJ45 8 (All PoE++) (10G/5G/2.5G/1G/100M)
10G SFP+ 2 (10G/1G)
Max. PoE Output Up to PoE++
Total PoE Availability 155W
Layer 3 ✓
Form Factor Compact desktop, wall
Etherlighting™ ✓
Switching Capacity 200 Gbps
Total Non-Blocking Throughput 100 Gbps
Forwarding Rate 149 Mpps
Supported VLANs 1,000
MAC Address Table Size 32,000
L3 Table Size
ARP Entries 12,000
IPv4 Routes 12,000
Packet Buffer Size 2 MB
DHCP Server (Local Networks) ✓
DHCP Relay ✓
Inter-VLAN Routing (Local Networks) ✓
Static Routing (Local Networks) ✓
LACP Port Aggregation ✓
STP & RSTP ✓
QoS (DSCP) ✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓
PoE Ports PoE++ 8
Max. PoE Wattage per Port by PSE
PoE 15.4W
PoE+ 30W
PoE++ 60W
Max. Power Consumption
61W (Excluding PoE output)
220W (Including PoE output)
Power Method AC/DC Adapter (included)
Power Input Method DC input
Power Supply AC/DC, external, 210W
Management Ethernet
Weight 1.6 kg
Enclosure Material SGCC steel
Mount Material Polycarbonate
ESD/EMP Protection Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature -5 to 45° C
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting™
Ethernet ✓
SFP+ ✓
LEDs
System ✓
Certifications CE, FCC, IC
NDAA Compliant ✓
