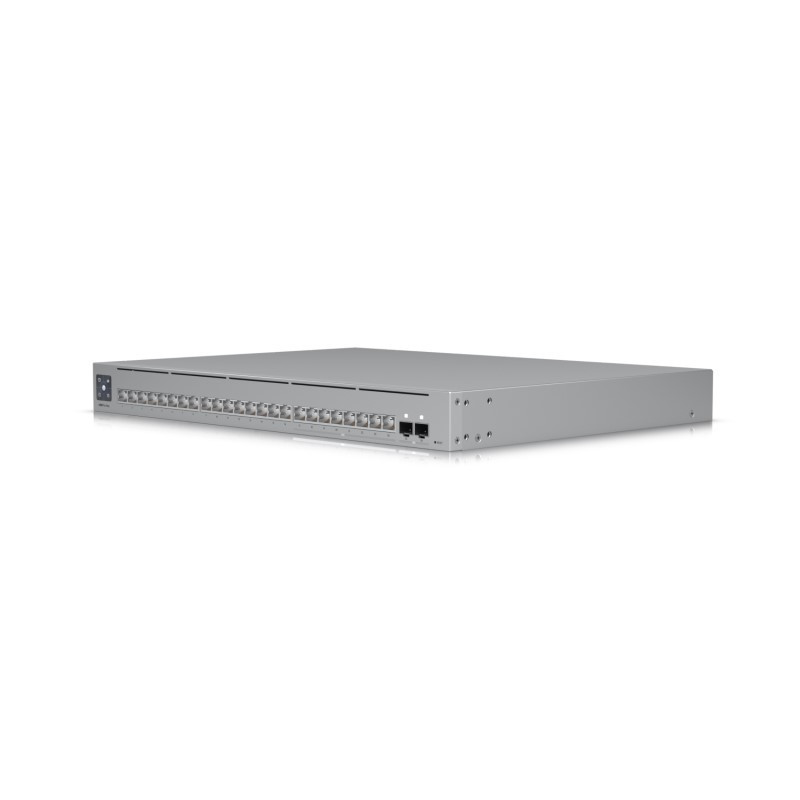

Pro Max 24 PoE

4.371,00 lei
Include TVA Livrare in 5-7 zile lucratoare

Un comutator Etherlighting™ Layer 3 cu 24 de porturi, cu ieșire de 2,5 GbE și PoE++.

Porturi Etherlighting™ care se luminează pentru a indica locația portului, viteza/linkul și VLAN/rețeaua nativă*

(8) porturi PoE++ de 2,5 GbE

(16) porturi GbE, inclusiv (8) PoE+ și (8) PoE++

(2) porturi 10G SFP+

Alimentare de rezervă gata

Disponibilitate totală PoE de 400 W

Gestionat cu UniFi Network 8.0.24 și versiuni ulterioare

Cantitate
Se aduce la comanda in 4-7 zile, in functie de stoc furnizor !

  Taxa Timbru Verde

este inclusa in pretul produsului

Mechanical
Dimensions 442 x 325 x 44 mm
Weight Without mounting brackets: 5.1 kg
With mounting brackets: 5.2 kg
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 56 Gbps
Switching capacity 112 Gbps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 450W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
Total available PoE 400W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40°C
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
LEDs
System Status
RPS Status
Application Requirements
UniFi Network Version 8.0.24 and later
USW-Pro-Max-24-PoE

Fisa tehnica

Capacitate LAN
2.5 Gbps
Numar porturi Ethernet
24
Numar porturi SFP+
2
