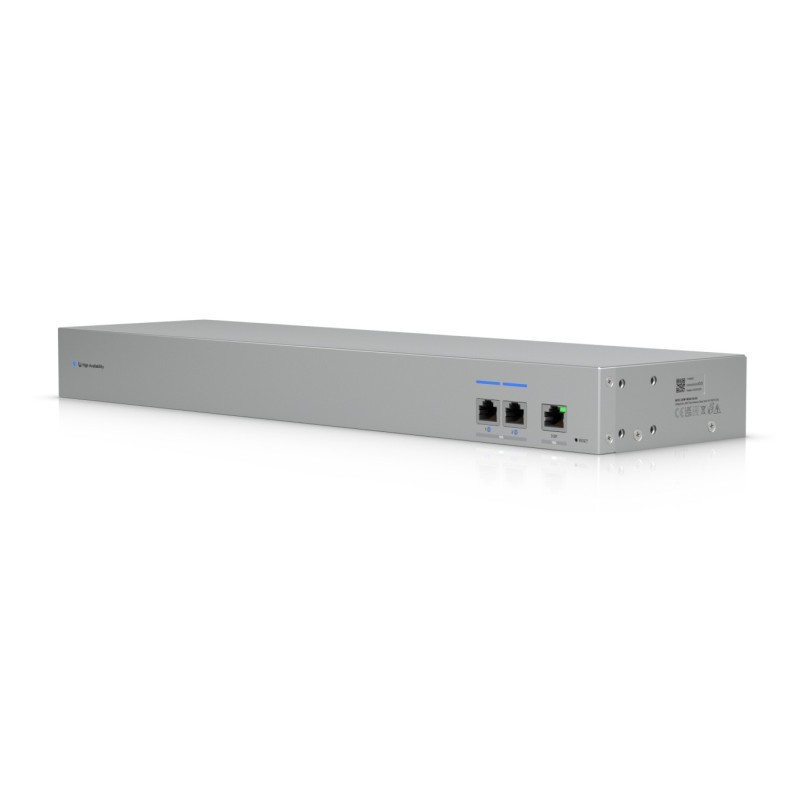

WAN Switch RJ45

Dimensions 442.4 x 120 x 43.7 mm
Port Layout
1 GbE RJ45
1 (1G/100M/10M)
10 GbE RJ45
3 (10G/5G/2.5G/1G/100M)
Redundancy (2) AC inputs
Form Factor Rack mount (1U)
Switching Capacity 20 Gbps
Total Non-Blocking Throughput 10 Gbps
Forwarding Rate 15 Mpps
Max. Power Consumption 18W
Power Method (2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method AC input
Power Supply (2) AC/DC, internal, 36W
Supported Voltage Range 100—240V AC
Management Ethernet
Weight
Without mounting brackets: 2.3 kg
With mounting brackets: 2.4 kg
Enclosure Material SGCC steel
Mount Material SGCC steel
ESD Protection Air: ± 16kV, contact: ± 10kV
Ambient Operating Temperature -5 to 40° C
Ambient Operating Humidity 10 to 90% noncondensing
LEDs
Ethernet ✓
System ✓
Certifications CE, FCC, IC
NDAA Compliant ✓
Application Requirements UniFi Network Version 9.1.120 and later
