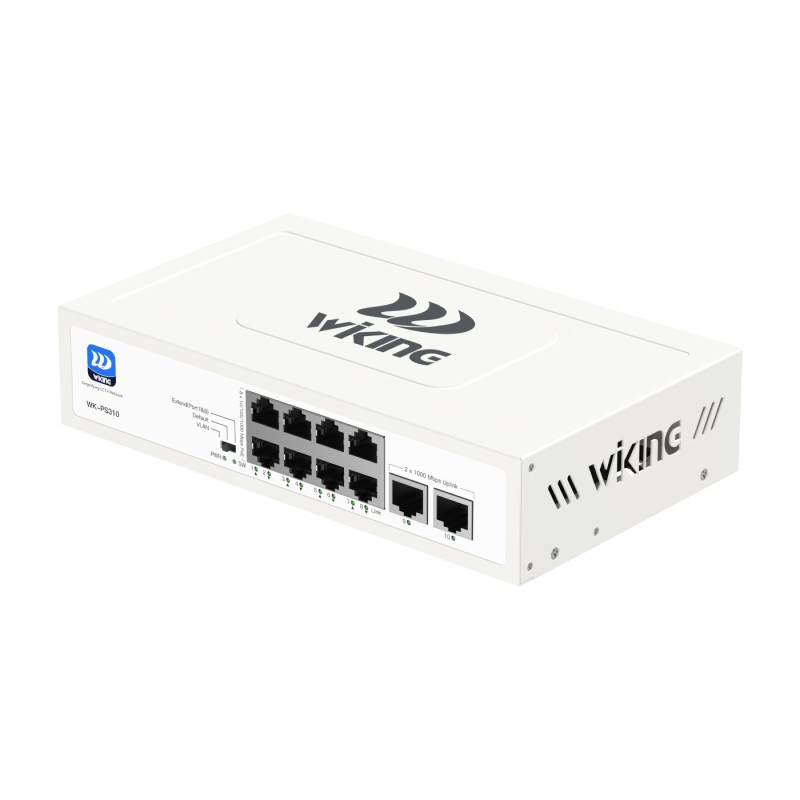

WK-PS310 PoE switch

The WK-PS310 is a compact and affordable 1Gbps PoE switch, ideal for small to medium-sized surveillance systems or IP networks. It offers 8 PoE ports supporting IEEE 802.3af/at (up to 30W per port) and 2 uplink ports for backbone network connection. With features like VLAN, Extend mode, and PoE watchdog, it provides a smart and reliable solution for network infrastructure. It's the perfect choice for users seeking a simple and functional solution for powering and transmitting data in surveillance systems, IP phones, or Wi-Fi access points without the need for additional splitters or configuration.

For design reasons, the switch cannot be used to power UniFi AP UAP-AC-M, UAP-AC-LITE, UAP-AC-LR and other devices that support both 24V passive power and active power according to the 802.3af/at/bt standards.

Key Features:

• 8× PoE ports (10/100/1000 Mbps) supporting 802.3af/at standards – up to 30W per port, total PoE budget 76W
• 2× uplink ports (10/100/1000 Mbps) for network or NVR connection
• Extend mode – data and power transmission up to 250 meters (limited to 10Mbps), valid for ports no. 7 and 8 only
• VLAN mode – isolation between PoE ports for enhanced network security
• PD Alive (PoE watchdog) – automatic restart of unresponsive IP devices
• Silent fanless design – ideal for offices, hotels, and other quiet environments
• Compact metal housing – suitable for desktop placement or wall mounting

A Switch for Every Office

Compact dimensions, silent operation, easy to use – the ideal network solution for a modern work environment.

Port Isolation for a Stable, Interference-Free Network

In VLAN mode, the individual PoE ports are isolated and can only communicate with the uplink ports. This prevents unwanted broadcast traffic between devices, protecting the network from congestion caused by "broadcast storms" and improving overall transmission reliability and security.

Smart PoE Watchdog – Camera Offline? The Switch Automatically Restarts It.

The PD Alive feature automatically detects whether a connected device (e.g., IP camera) is responsive. If the camera stops responding, the switch automatically powers it off and back on. This ensures continuous operation of the surveillance system without administrator intervention.

Extend PoE Range up to 250m (Only for Ports No. 7 and 8)

In Extend mode, the switch can supply power and transmit data to devices up to 250 meters away (with a speed limit of 10 Mbps). This is ideal for deploying cameras in larger areas where standard PoE reaches its 100m limit.

Fanless and Silent – Perfect for the Office

Thanks to passive fanless cooling, the switch operates silently. It's suitable not only for rack installations but also for placing directly on a desk in an office, reception, or small business.

Package Contents:

• PoE switch WK-PS310
• 230 VAC power cable
• Quick installation manual
