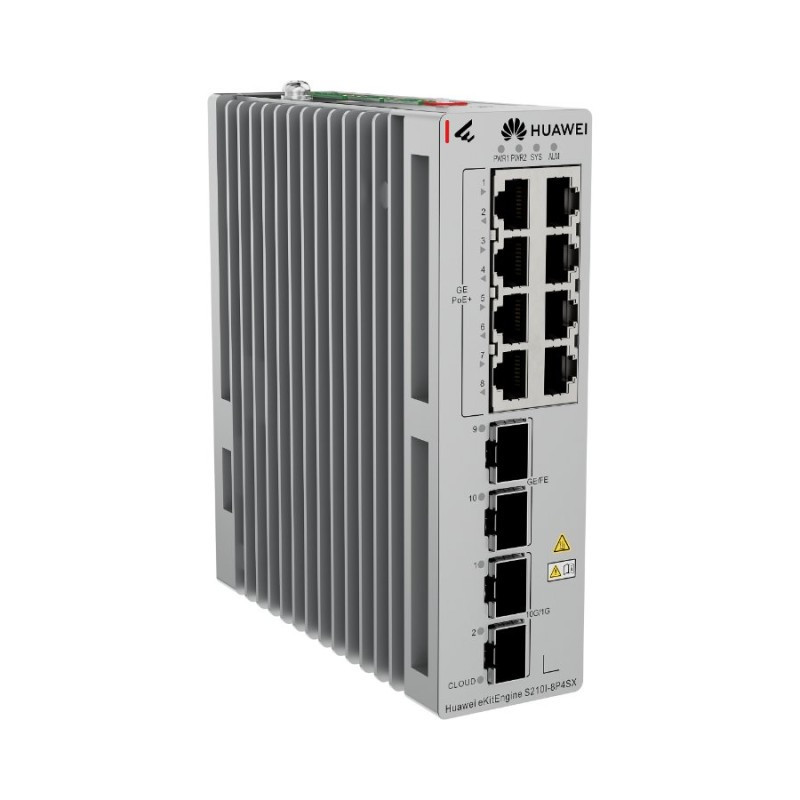

S210I-8P4SX
1.048,00 lei
Include TVA
Livrare in 5-7 zile lucratoare
S210I-8P4SX (8*10/100/1000BASE-T ports, 2*GE SFP ports, 2*10GE SFP+ ports, PoE+, DIN Rail Mounting, Dual redundant 48 to 57V DC supply, Fanless, Without power module).
Taxa Timbru Verde
este inclusa in pretul produsului
S210I-8P4SX (8*10/100/1000BASE-T ports, 2*GE SFP ports, 2*10GE SFP+ ports, PoE+, DIN Rail Mounting, Dual redundant 48 to 57V DC supply, Fanless, Without power module).
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 10/100/1000BASE-T port | RJ45 | A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. | |
| 1000BASE-X port | SFP | A 1000BASE-X port can send and receive data at 1000 Mbit/s or 100 Mbit/s. | |
| 10GE SFP+ optical port | SFP+ | A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. | |
| DI port | 1x5-Pin Phoenix Connector |
The DI port is used to check active level signals. Signal type: 9.6 V to 60 V for state 1; –30 V to +3 V for state 0 |
|
| DO port | 1x5-Pin Phoenix Connector |
The DO port outputs signals so that the connected device can take corresponding actions. Signal type: Passive DO signals, Boolean value (short circuit and open circuit) |
S210I-8P4SX
Fisa tehnica
- Capacitate LAN
- 1 Gbps
- Numar porturi Ethernet
- 8
- Numar porturi SFP
- 2
- Numar porturi SFP+
- 2
