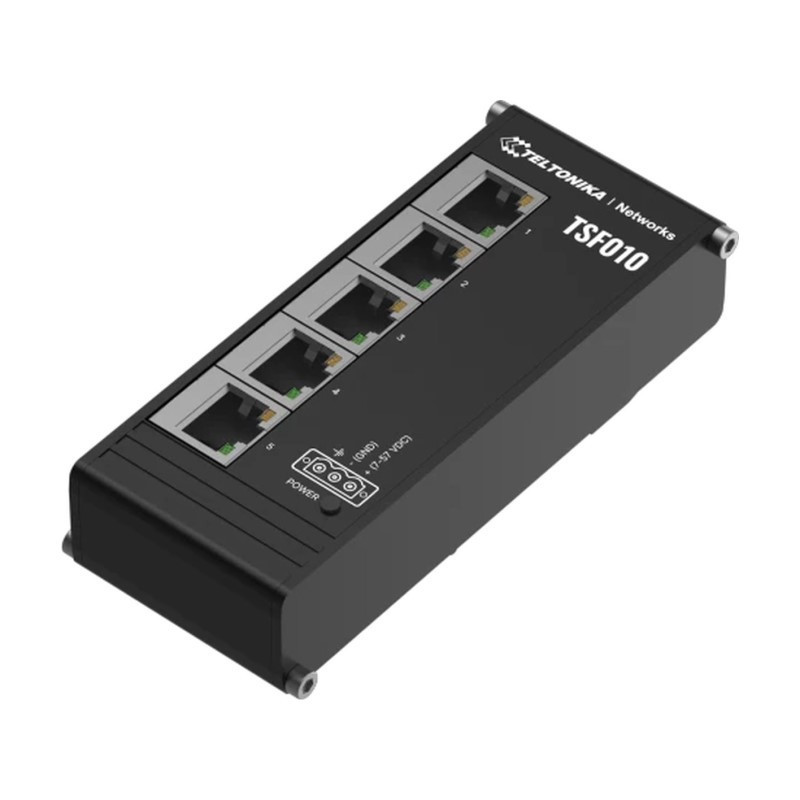

TSF010 Flat Ethernet Switch
193,00 lei
Include TVA
Livrare in 5-7 zile lucratoare
3-PIN POWER INPUT: Flexible and tailor-made for industrial use
FLAT & COMPACT: Flat and compact design weighing only 142 g
INTEGRATED DIN RAIL BRACKET:Easy mounting for plug-and-play deployment
7-57 VDC: Suitable voltage range for industrial applications
Taxa Timbru Verde
este inclusa in pretul produsului
The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
Ethernet
ETHERNET
5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Performance Specifications
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
Power
Connector
3-pin industrial DC power socket
Input voltage range
7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,
surge protection: min 64.4V/max 71.2V breakdown voltage,
93.6V maximum reverse voltage @4.3A maximum reverse surge current
Power consumption
Idle: 1 W / Max: 1.5 W
Physical Interfaces
Ethernet
5 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 3-pin industrial DC power socket
Grounding
Grounding terminal on power connector
Physical Specification
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
113 x 28 x 50 mm
Weight
142 g
Mounting options
Integrated DIN rail bracket
Operating Environment
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
ETHERNET
5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Performance Specifications
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
Power
Connector
3-pin industrial DC power socket
Input voltage range
7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,
surge protection: min 64.4V/max 71.2V breakdown voltage,
93.6V maximum reverse voltage @4.3A maximum reverse surge current
Power consumption
Idle: 1 W / Max: 1.5 W
Physical Interfaces
Ethernet
5 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 3-pin industrial DC power socket
Grounding
Grounding terminal on power connector
Physical Specification
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
113 x 28 x 50 mm
Weight
142 g
Mounting options
Integrated DIN rail bracket
Operating Environment
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
TSF010000000
Fisa tehnica
- Capacitate LAN
- 100 Mbps
- Numar porturi Ethernet
- 5
