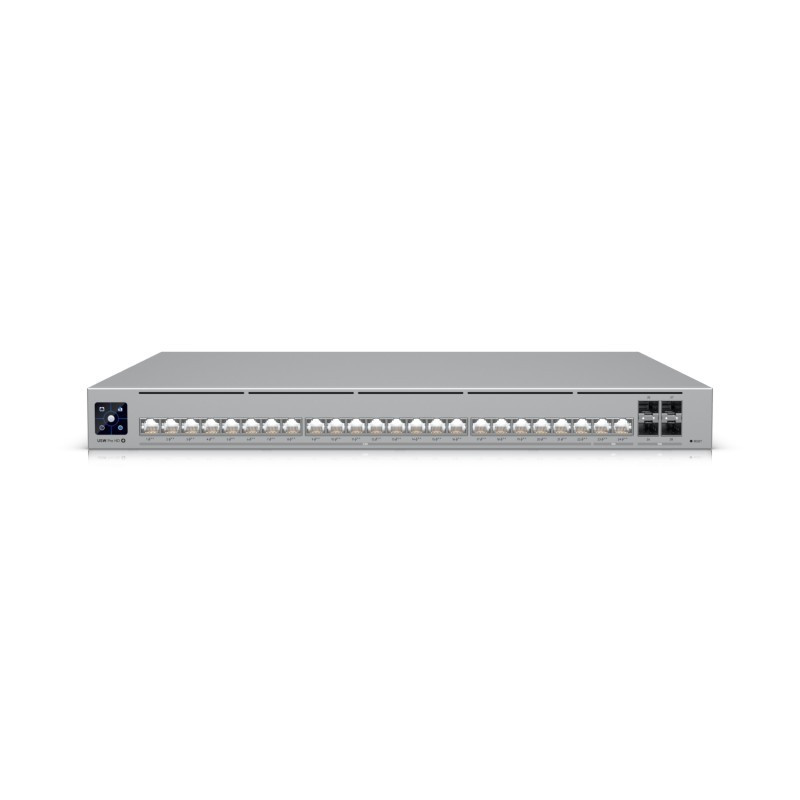

Pro HD 24
3.088,00 lei
Include TVA
Livrare in 5-7 zile lucratoare
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.
Taxa Timbru Verde
este inclusa in pretul produsului
Overview
Dimensions 442 x 285 x 44 mm
Port Layout 2.5 GbE RJ45 22 (2.5G/1G/100M/10M)
10 GbE RJ45 2 (10G/5G/2.5G/1G/100M)
10G SFP+ 4 (10G/1G)
Redundancy DC Power Backup
Layer 3 Yes
Form Factor Rack mount (1U)
Etherlighting™ Yes
Performance
Switching Capacity 230 Gbps
Total Non-Blocking Throughput 115 Gbps
Forwarding Rate 171.12 Mpps
Supported VLANs 1,000
MAC Address Table Size 32,000
L3 Table Size
ARP Entries 12,000
IPv4 Routes 12,000
Packet Buffer Size 2 MB
Layer 3 Features
DHCP Server (Local Networks) Yes
DHCP Relay Yes
Inter-VLAN Routing (Local Networks) Yes
Static Routing (Local Networks) Yes
Layer 2 Features
LACP Port Aggregation Yes
STP & RSTP Yes
QoS (DSCP) Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) Yes
IGMP Snooping Yes
802.1X Control Yes
MAC-Based ACLs & Device Isolation Yes
DHCP Snooping & Guarding Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
MAC Address Blocking Yes
IP-Based ACLs & Network Isolation Yes
MAC-Based Port Restriction Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
LLDP-MED Yes
Voice VLAN Yes
Loop Protection Yes
Hardware
Max. Power Consumption 60W
Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method AC input
Power Supply AC/DC, internal, 60W
Supported Voltage Range 100—240V AC
Management Ethernet AR
Heat Dissipation (Excluding PoE Output) 102.36 BTU/hr
Weight Without mounting brackets: 4.2 kg With mounting brackets: 4.3 kg
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400~1200 mm
LCM Display 1.3" touchscreen
Ambient Operating Temperature -5 to 40°C
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting™
Ethernet Yes
SFP+ Yes
Certifications CE, FCC, IC
NDAA Compliant Yes
Software
Application Requirements UniFi Network Version 9.0.114 and later
USW-Pro-HD-24
