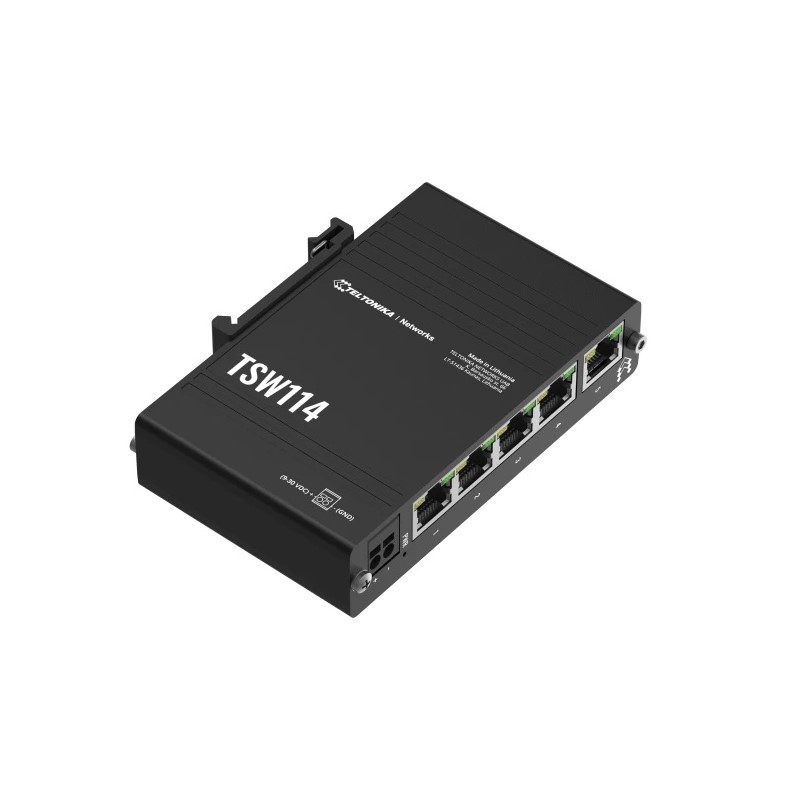

TSW114 Gigabit Din Rail Switch

Ethernet
    LAN    5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
    IEEE 802.3 series standards    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad

Performance Specifications
    Bandwidth (Non-blocking)    10 Gbps
    Packer buffer    128 KB
    MAC address table size    2K entries
    Jumbo frame support    9216 bytes

Power
    Connector    2-pin industrial DC power socket
    Input voltage range    9 – 30 VDC
    PoE (passive)    Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
    Power consumption    Idle: 0.3 W / Max: 2.3 W

Physical Interfaces
    Ethernet    5 x RJ45 ports, 10/100/1000 Mbps
    Status LEDs    1 x Power LED, 10 x LAN status LEDs
    Power    1 x 2-pin industrial DC power socket
    Other    1 x Grounding screw

Physical Specification
    Casing material    Anodized aluminum housing and panels
    Dimensions (W x H x D)    113.1 x 27.4 x 80.5 mm
    Weight    174 g
    Mounting options    Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

Operating Environment
    Operating temperature    -40 °C to 75 °C
    Operating humidity    10% to 90% non-condensing
    Ingress Protection Rating    IP30

Regulatory & Type Approvals
    Regulatory    CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

Safety
    Standards     EN IEC 62368-1:2020+A11:2020
