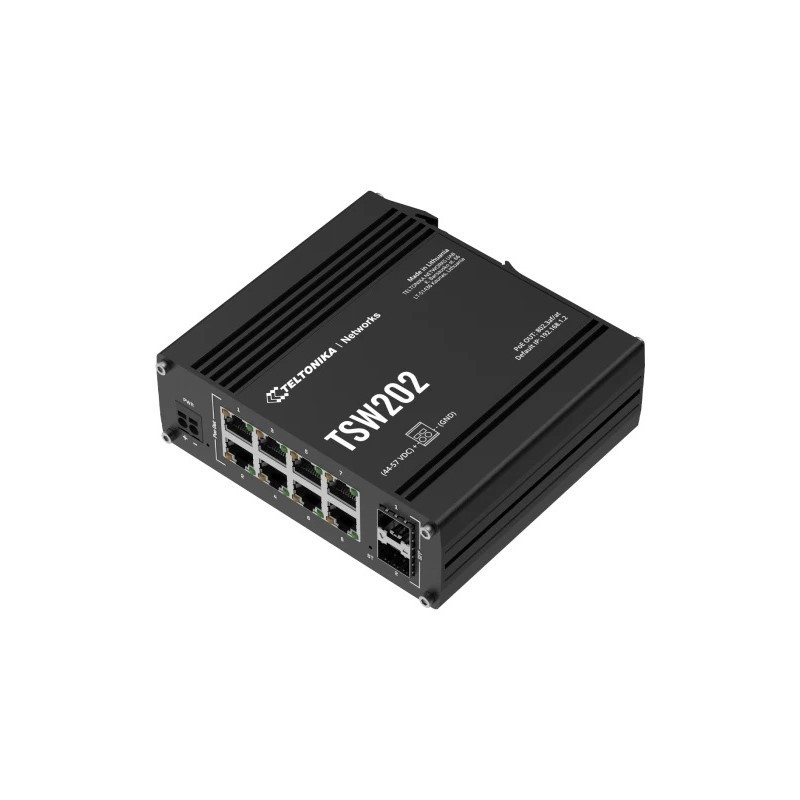

TSW202 Managed PoE+ Switch

    ETH - Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
    Fibre - 2 x SFP ports
    IEEE 802.3 series standards - IEEE 802.1p, IEEE 802.1Q, 802.3az
    PoE ports - Port 1 - 8
    PoE standards - 802.3af and 802.3at
    PoE Max Power per Port (at PSE) - 30 W
    Total PoE Power Budget (at PSE) - 240 W
    Maximum Ethernet cable length - 100 m
    EtherNet/IP - Yes
    Profinet (class B) - Yes
    SNMP V2, V3 - Yes
    LLDP - Yes
    MRP - MRP client role, MRP manager role
    L2 features - Loop protection, Forwarding table, VLAN, STP/RSTP
    DHCP - DHCP server, DHCP client
    Port Settings - Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
    L3 Features - Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
    QOS - Port priority, DSCP priority, 802.1p priority, TOS
    Scheduling method - SP/WFQ/WRR
    Bandwidth control - Rate limiting, storm control
    Traffic Shaper - Port-based shaping
    Tools - Cable diagnostic, ping, traceroute, nslookup
    RAM - 128MB, DDR3
    FLASH storage - 16 MB serial flash
    WEB UI - Update FW from file, check FW on server, configuration profiles, configuration backup
    FOTA - Update FW
    RMS - Update FW/configuration for multiple devices at once
    Keep settings - Update FW without losing current configuration
    Operating system - TSWOS (OpenWrt based Linux OS)
    Supported languages - Busybox shell, Lua, C, C++
    Development tools - SDK package with build environment provided
    Bandwidth (Non-blocking) - 20 Gbps
    Packet buffer - 512 KB
    MAC address table size - 8K entries
    Jumbo frame support - 10000 bytes
    Connector - 2-pin industrial DC power socket
    Input voltage range - 7 – 57 VDC
    PoE-out input voltage range - 44 – 57 VDC
    Power consumption - Idle: < 3 W / Max: 8 W / PoE Max: 248 W
    Ethernet - 8 x RJ45 ports, 10/100/1000 Mbps
    Fibre - 2 x SFP ports
    Status LEDs - 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
    Power - 1 x 2-pin industrial DC power socket
    Reset - Software reset button
    Other - 1 x Grounding screw
    Casing material - Anodized aluminum housing and panels
    Dimensions (W x H x D) - 132 x 44.2 x 122.2 mm, Weight - 610 g
    Mounting options - Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
    Operating temperature - -40 °C to 75 °C
    Operating humidity - 10% to 90% non-condensing
    Ingress Protection Rating - IP30
    Regulatory - CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH
    Standards - EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
    ESD - EN 61000-4-2:2009
    Radiated Immunity - EN IEC 61000-4-3:2020
    EFT - EN 61000-4-4:2012
    Surge Immunity (AC Mains Power Port) - EN 61000-4-5:2014 + A1:2017
    CS - EN 61000-4-6:2014
    DIP - EN 61000-4-11:2020
    Standards - CE: EN IEC 62368-1:2020 + A11:2020
    RCM: AS/NZS 62368.1:2022
    CB: IEC 62368-1:2018
