- Nou
DDR-15G-5
Ofertă la cerere!
Include TVA
Livrare in 5-7 zile lucratoare
Width only 17.5mm (1SU)
4:1 ultra wide input range
-40~+85 wide working temperature℃
No minimum load required
DC output adjustable ( 10%)±
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Protections: Short circuit / Overload / Over voltage /
Input reverse polarity /
Input under voltage protection
4KVdc I/O isolation(Reinforced isolation)
Taxa Timbru Verde
este inclusa in pretul produsului

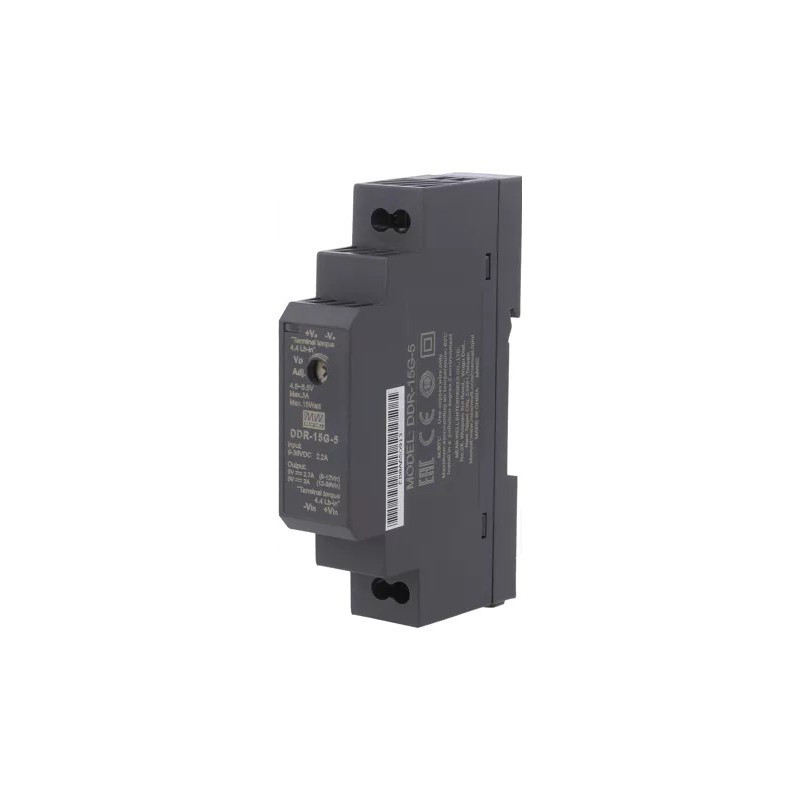

DDR-15 series is a 15W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation,
ultra slim width (17.5mm), 4: 1 wide input voltage, -40~+85 wide operating temperature, 4KVdc I/O isolation,℃ultra
adjustable output voltage (± 10%) and full protective functions...etc.
This series has two input options: 9~36V /18~75V and various output options: 3.3V / 5V / 12V / 15V / 24V and
can be used for industrial control, security control, communication system and other fields. Suitable applications
are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
Output voltage: 5 Vdc
Input voltage: 9~36Vdc
DDR-15G-5
Fisa tehnica
- Curent Iesire
- 3A
- Tensiune Iesire
- 5V
