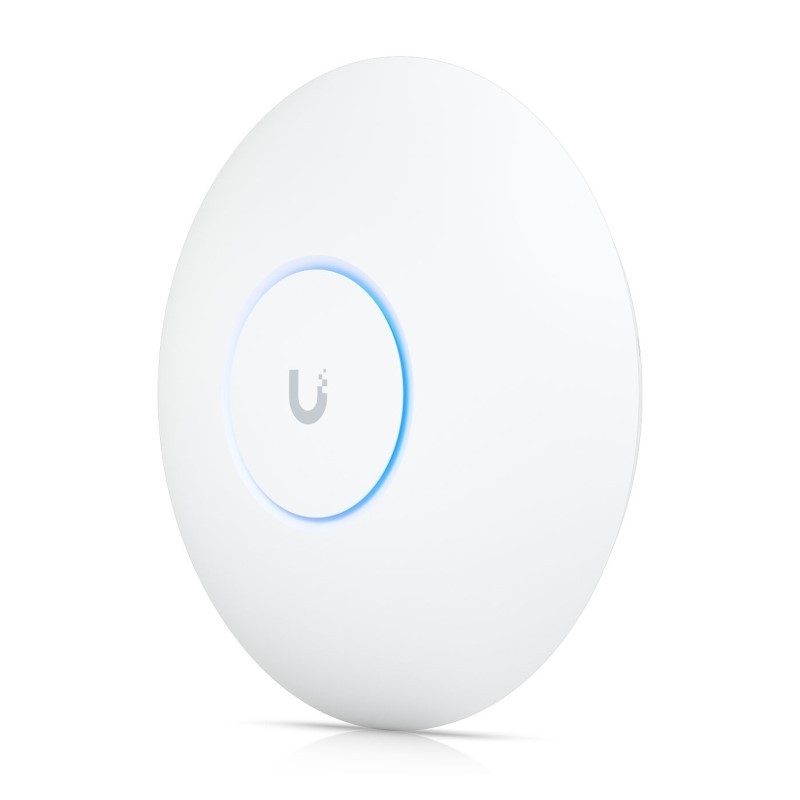

U7 Pro Max
1.531,00 lei
Include TVA
Livrare in 5-7 zile lucratoare
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection*
160 m² (1,750 ft²) coverage
500+ connected devices
Powered using PoE+
2.5 GbE uplink
Taxa Timbru Verde
este inclusa in pretul produsului
Dimensions Ø206 x 46 mm
WiFi Standard WiFi 7
Spatial Streams 8
Coverage Area 160 m²
Max. Client Count 500+
Uplink 2.5 GbE
Mounting Ceiling, Wall (Pro Mount Included)
Power Method PoE+
MIMO
6 GHz 2 x 2 (DL/UL MU-MIMO)
5 GHz 4 x 4 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz 5.8 Gbps (BW320)
5 GHz 8.6 Gbps (BW240)
2.4 GHz 688 Mbps (BW40)
Antenna Gain
6 GHz 5.9 dBi
5 GHz 6 dBi
2.4 GHz 4 dBi
Max. TX Power
6 GHz 23 dBm
5 GHz 29 dBm
2.4 GHz 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates
802.11be (WiFi 7) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Advanced Radio Management ✓
Real-Time Spectral Analysis ✓
Passpoint (Hotspot 2.0) ✓
Captive Hotspot Portal
Custom Branding Landing Page ✓
Voucher Authentication ✓
Payment-Based Authentication ✓
External Portal Server Support ✓
Password Authentication ✓
Guest Network Isolation ✓
Private Pre-Shared Key (PPSK) ✓
WiFi Speed Limiting ✓
Client Device Isolation ✓
WiFi Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic RADIUS-assigned VLAN ✓
Max. Power Consumption 25W
Supported Voltage Range 44—57V DC
Networking Interface (1) 1/2.5 GbE RJ45 port
Weight 680 g
Management Ethernet
Enclosure Material Polycarbonate, aluminum
Mount Material Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Certifications CE, FCC, IC
NDAA Compliant ✓
Operating Frequency US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz
Ambient Operating Temperature -30 to 50° C
Ambient Operating Humidity 5 to 95% noncondensing
Application Requirements
UniFi Network Version 8.2.93 and later
U7-Pro-Max
Fisa tehnica
- Capacitate LAN
- 2.5 Gbps
- Frecventa
- 2.4 & 5GHz
2.4GHz, 5GHz & 6GHz - Numar porturi Ethernet
- 1
