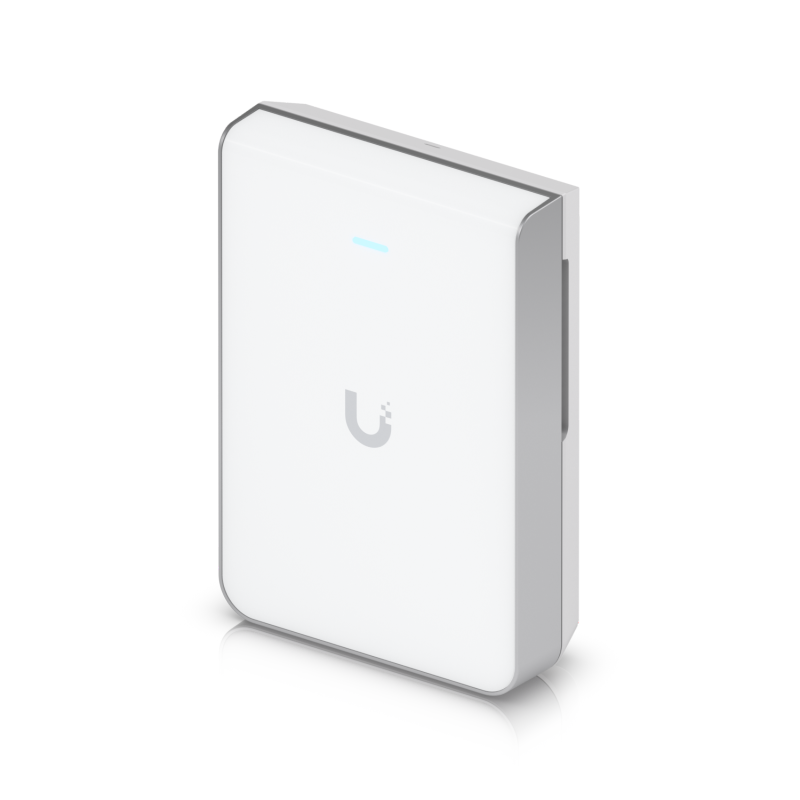

U7 Pro Wall
search
  • U7 Pro Wall

U7 Pro Wall

1.028,00 lei
Include TVA Livrare in 5-7 zile lucratoare
2024-08-05
115 m² Coverage
Up to 600 Connected Devices
WiFi 6 or WiFi 6E
Built-in PoE Switch
Power over Ethernet
Up to 2.5 GbE Uplink

Cantitate
Se aduce la comanda in 5-7 zile, in functie de stoc furnizor !

Mechanical
Dimensions 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
Weight 580 g (1.3 lb)
Enclosure material Polycarbonate, aluminum
Mount material Aluminum
Hardware
Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 44—57V DC
Max. power consumption 22W
Max. TX power
2.4 GHz
5 GHz
6 GHz

22 dBm
26 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2
2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz

688 Mbps
4324 Mbps
5764 Mbps
Antenna gain
2.4 GHz
5 GHz
6 GHz

4 dBi
5 dBi
6 dBi
LEDs White/blue
Button Factory reset
Mounting Wall (Included)
Table stand, flush mount (Optional)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network Version 8.1 and later
UniFi OS Version 3.2 and later
U7-Pro-Wall
2024-08-05

Fisa tehnica

Capacitate LAN
2.5 Gbps
Numar porturi LAN
1
