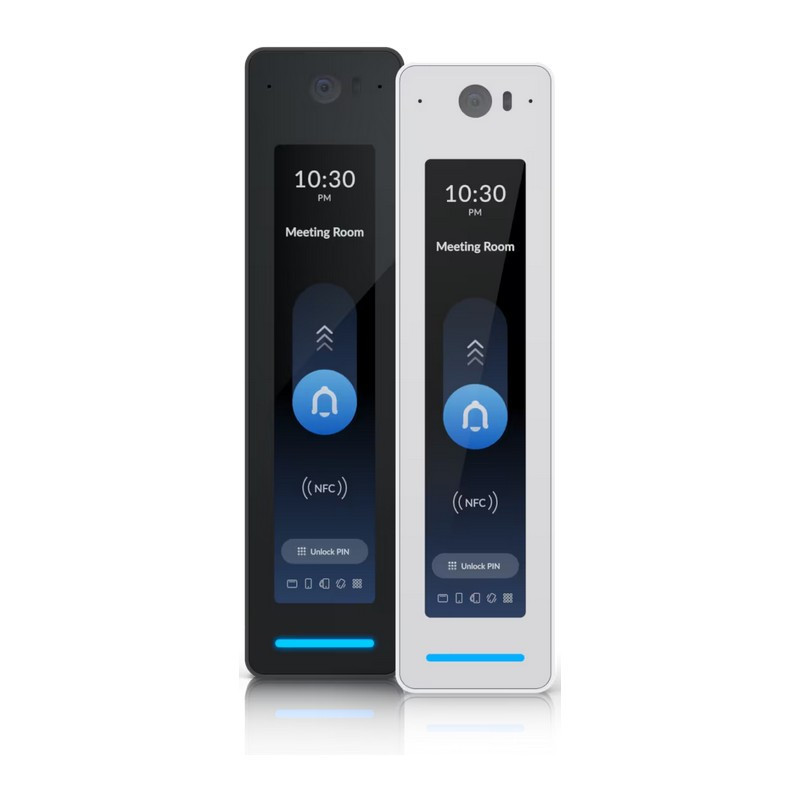

G3 Reader Pro

Dimensions 160 x 40.4 x 40.55 mm
Integrated Camera ✓
NFC Card & Keyfob Access ✓
PIN Access ✓
Apple/Google Wallet ✓
Mobile Unlock ✓
Two-Way Intercom & Doorbell Access ✓
NDAA Compliant ✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weatherproofing IP55
Weight 136 g
Enclosure Material Polycarbonate, glass
Mount Material Aluminum alloy
Mounting Wall, gang-box mount (Included)
Angle mount, junction box (Optional)
Indoor and Outdoor Use Yes
Ambient Operating Temperature
Device: -30 to 45° C
Display: -10 to 45° C
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (1) GbE RJ45 port
Connectivity
BLE 4.2
NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 6W
Supported Voltage Range 48V DC
ESD/EMP Protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Display 120 mm diagonal
Touch Screen Technology Capacitive touch
Display Luminance 480 nits (Typical)
Screen Orientation Portrait
Resolution 1280 x 286 px
Microphone ✓
Speaker ✓
LEDs R/G/B/W/Amber Learn More
Button (1) Factory-reset
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications CE, FCC, IC,UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3-Pro-W/UA-G3-Pro-B, V01
Management Application Access
Software Information
The software version can be checked at https://unifi.ui.com
