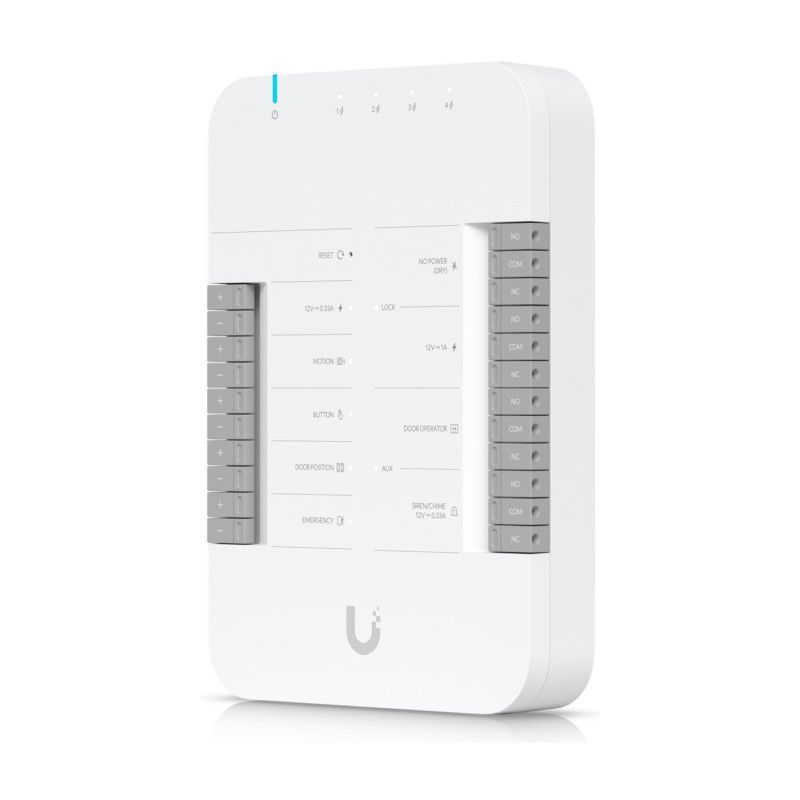

Door Hub

Dimensions 174.9 x 126 x 32.9 mm
UniFi Application Suite Access ✓
Supported Doors 1
Input Terminals
(2) Door exit request
(1) Door position
(1) Emergency
Power Method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant ✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight 363 g
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Mounting DIN-rail (Included)
Digital Input
Request to exit, request to enter, remote release, door position sensor
Dry Output Relay
Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered Output Relay
Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A
Indoor and Outdoor Use Indoor only
Ambient Operating Temperature 0 to 40° C
Ambient Operating Humidity 5 to 95% noncondensing
Networking Interface (5) 10/100/1000 Base-T
PoE Interface
(1) PoE++ input, 50V DC, 1A
(4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)
Max. Power Consumption
30W (Without PoE output)
50W (With PoE output)
LEDs W/B Learn More
Buttons (1) Factory-reset
Recommend Max. Cable Length
UA-Lock-Electric (400mA)
24 AWG length: 25 m
22 AWG length: 42 m
20 AWG length: 66 m
18 UACC-Cable-DoorLockRelay length: 100 m
UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 20 m
22 AWG length: 32 m
20 AWG length: 51 m
18 UACC-Cable-DoorLockRelay length: 80 m
UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m
22 AWG length: 20 m
20 AWG length: 30 m
18 UACC-Cable-DoorLockRelay length: 46 m
Other locks (1A)
24 AWG length: 9 m
22 AWG length: 15 m
20 AWG length: 24 m
18 UACC-Cable-DoorLockRelay length: 36 m
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: 1
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Hub-Door002, V01
Management Application Access
Software Information
The software version can be checked at https://unifi.ui.com
