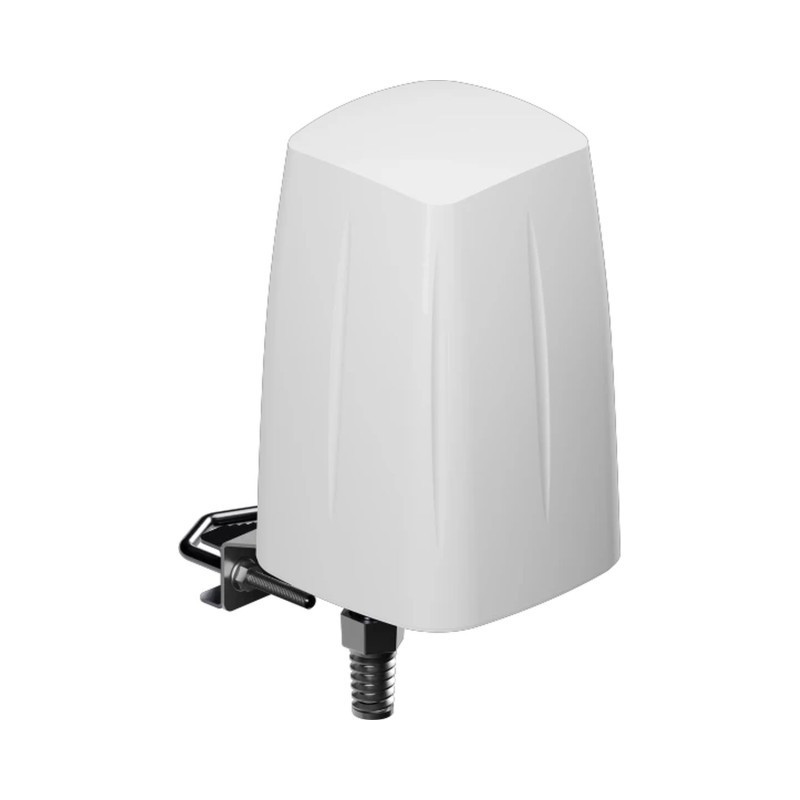

OUTDOOR LTE/WI-FI/GPS/BLUETOOTH ANTENNA FOR RUTX11 AND RUTM11 ROUTERS

LTE ANTENNA

    Frequency Range    617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
    Polarisation    Vertical
    Radiation pattern type        Omnidirectional
    Gain    Max 4.5 dBi
    V.S.W.R    < 2.50
    Impedance    50 Ω
    Connector type and count    2x SMA male

BT ANTENNA
    Frequency Range    2200 ~ 2700 MHz
    Polarisation    Vertical
    Gain    2 dBi
    V.S.W.R    < 2.00
    Impedance    50 Ω
    Connector type and count    1x RP-SMA male
    The Bluetooth antenna is not utilised when used with the RUTM11

WI-FI ANTENNA
    Frequency Range    2400 ~ 2500, 4700 ~ 6000 MHz
    Polarisation    Vertical
    Radiation pattern type    Omnidirectional
    Gain    Max 7.5 dBi
    V.S.W.R    < 2.00
    Impedance    50 Ω
    Connector type and count    2x RP-SMA male

GNSS ANTENNA
    Frequency Range    1560 ~ 1610 MHz
    Polarisation    RHCP
    Gain    28 dBi
    V.S.W.R    < 2.00
    Impedance    50 Ω
    Connector type and count    1x SMA male
    Current consumption    2.5 - 6.5 mA
    Supply voltage    2.5 - 6.5 VDC

MECHANICAL/ENVIRONMENTAL
    Cable    5x RG316, 1x RG174
    Operating Temperature    -40 °C to 75 °C
    Mounting Method    Wall, ceiling, mast
    IP rating    IP67
    Weight    1500 g
    RoHS compliant    ✓
