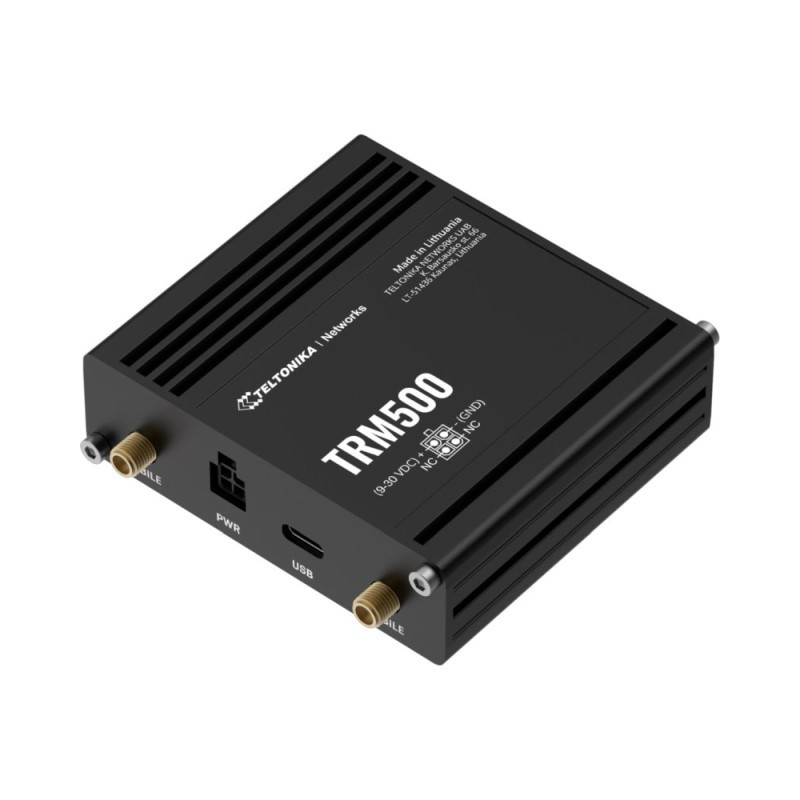

TRM500 5G Modem with USB Type-C

5G: Ultra-high cellular speeds of up to 3.4 Gbps

FUTURE-PROOFING: Backward compatible with 4G (Cat 19) and 3G

USB TYPE-C: For simultaneous network data and powering

COMPACT: Small size, easy installation

Mobile module

    5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL); 5G NSA Sub-6GHz: 3.4Gbps DL (4x4 MIMO)/ 550 Mbps UL (2x2); 4G (LTE-FDD) – LTE Cat 19 1.6Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL

    3GPP Release: Release 16

Power Connector

    1 x 4-pin industrial DC power socket

    1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

    Input voltage range

    4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max

    USB Type-C: 5 VDC

    Power consumption

    Idle: < 5 W, Max: < 12 W

Physical Interfaces

    Status LEDs

    1 x Power LED, 1 x 5G LED, 1 x Network LED

    SIM

    1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

    Power

    1 x 4-pin power connector

    1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

    Antennas

    4 x SMA for Mobile

    Other

    1 x Virtual network interface via USB Type-C (For power and network data)

Physical Specification

    Casing material

    Anodized aluminum housing and panels

    Dimensions (W x H x D)

    83 x 25 x 85.4 mm

    Weight

    94.5 g

    Mounting options

    DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

    Operating temperature

    -40 °C to 75 °C

    Operating humidity

    10% to 90% non-condensing

    Ingress Protection Rating

    IP30

TRM SOFTWARE

    Management Software

    Windows Connection Manager, Modem Manager (Linux)

    USB Serial Driver

    Windows 7/8/8.1/10/11,Linux 2.6~6.3,Android 4.x ~ 13

    GNSS Driver

    Android 4.x ~ 13

    RIL Driver

    Android 4.x ~ 13

    NDIS Driver

    Windows 7/8/8.1/10/11

    MBIM Driver

    Windows 8/8.1/10/11, Linux 3.18~6.3

    Gobinet Driver

    Linux 2.6/3.x/4.1~4.14

    QMI_WWAN Driver

    Linux 3.4~6.3

Regulatory & Type Approvals

    Regulatory

    WEE

EMC Emissions & Immunity Standards

    EN 55032:2015+A1:2020

    EN 55035:2017+A11:2020

    EN 61000-3-3:2013+A1:2019+A2:2021

    EN IEC 61000-3-2:2019+A1:2021

    EN 301 489-1 V2.2.3

    EN 301 489-52 V1.2.1

    AS/NZS CISPR 32:2015+A1:2020

    ESD

    EN 61000-4-2:2009

    Radiated Immunity

    EN IEC 61000-4-3:2020

    EFT

    EN 61000-4-4:2012

    Surge Immunity (AC Mains Power Port)

    EN 61000-4-5:2014+A1:2017

    CS

    EN 61000-4-6:2014

    DIP

    EN 61000-4-11:2020

RF Standards

    EN 301 908-1 V15.2.1

    EN 301 908-2 V13.1.1

    EN 301 908-13 V13.2.1

    EN 301 908-25 V15.1.1

    AS/CA S042.1:2022

    AS/CA S042.4:2022

    AS/CA S042.5:2022+A1:2022

    FCC Part 22

Safety Standards

    EN IEC 62311:2020

    EN IEC 62368-1:2018
