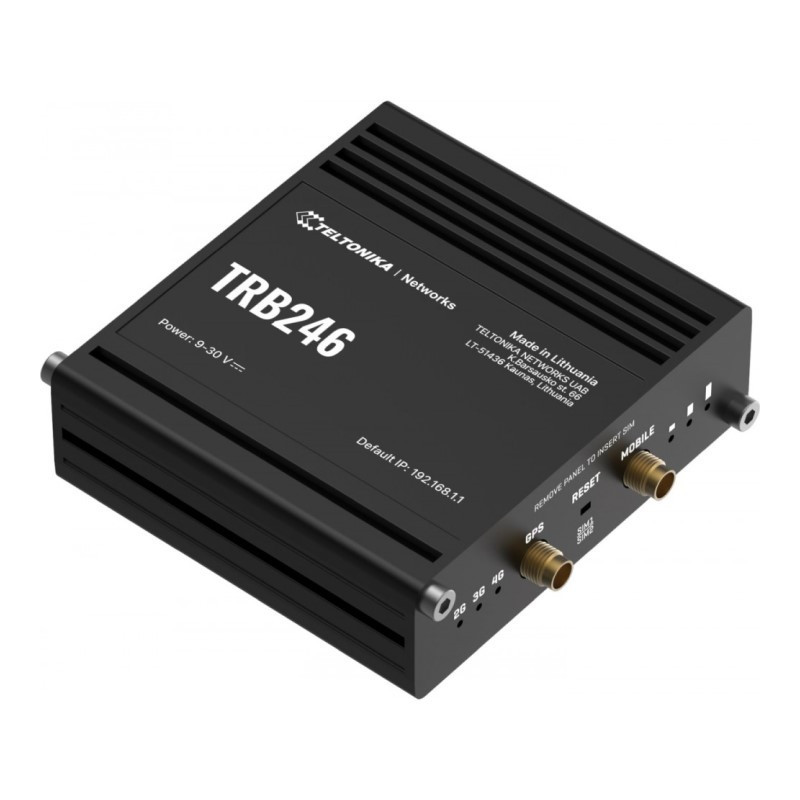

TRB246 Industrial IoT Gateway

Mobile

    Mobile module

    4G LTE up to 150 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps; 2G up to 296 DL/236.8 UL Kbps

    SIM switch

    2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail

    Status

    IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

    SMS

    SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

    USSD

    Supports sending and reading Unstructured Supplementary Service Data messages

    Black/White list

    Operator black/white list (by country or separate operators)

    Multiple PDN

    Possibility to use different PDNs for multiple network access and services

    Band management

    Band lock, Used band status display

    SIM idle protection service

    When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then

    APN

    Auto APN

    Bridge

    Direct connection (bridge) between mobile ISP and device on LAN

    Passthrough

    Gateway assigns its mobile WAN IP address to another device on LAN

Ethernet

    Ethernet 1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

    Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

    Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

    VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

    Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

    Firewall Port forward, traffic rules, custom rules

    Firewall status page View all your Firewall statistics, rules, and rule counters

    Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

    Network topology Visual representation of your network, showing which devices are connected to which other devices

    Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

    DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

    QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

    DDNS Supported >25 service providers, others can be configured manually

    Network backup Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

    SSHFS Possibility to mount remote file system via SSH protocol

Security

    Authentication

    Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator

    Firewall

    Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

    Attack prevention

    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

    VLAN

    Tag-based VLAN separation

    Mobile quota control

    Mobile data limit, customizable period, start time, warning limit, phone number

    WEB filter

    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

    Access control

    Flexible access control of SSH, Web interface, CLI and Telnet

VPN

    OpenVPN

    Multiple clients and a server can run simultaneously, 27 encryption methods

    OpenVPN Encryption

    DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

    BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

    IPsec

    IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

    GRE

    GRE tunnel, GRE tunnel over IPsec support

    PPTP, L2TP

    Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

    Stunnel

    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

    DMVPN

    Method of building scalable IPsec VPNs

    SSTP

    SSTP client instance support

    ZeroTier

    ZeroTier VPN client support

    WireGuard

    WireGuard VPN client and server support

    Tinc

    Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BACNET

    Supported modes

    Router

    Supported connection types

    RS485, TCP
