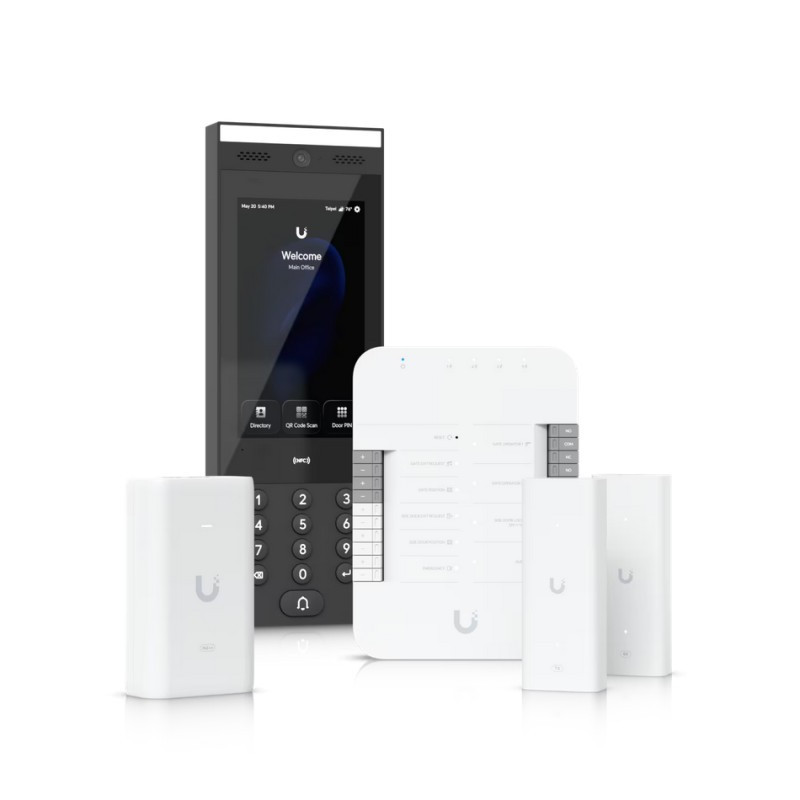

G3 Gate Starter Kit

In the Box
(1) Gate Hub
(1) G3 Intercom
(1) PoE++ adapter
(2) 2-wire Retrofit Extenders
Touch Pass 10 free 1-year Touch Passes included
Dimensions 175 x 126 x 26 mm
Supported Doors 1 gate, 1 side door
Input Terminals
(1) Gate exit request
(1) Gate position
(1) Side door exit
(1) Side door position
(1) Emergency
Power Method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Enclosure Material Polycarbonate
Mounting DIN-rail (Included)
Weight 460 g
Indoor and Outdoor Use
Indoor only: device itself
Outdoor: with waterproof junction box
NDAA Compliant ✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Ambient Operating Temperature -30 to 60° C
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (5) 10/100/1000 Base-T
PoE Interface
(1) PoE++ input, 50V DC, 1A
(4) PoE outputs, 50V DC, 30W per port
(Max 55W aggregated) Max.
Power Consumption
22W (Without PoE output)
60W (With PoE output)
Digital Input Gate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay
(2) Operator: rated 30V DC, up to 1A
(1) Aux: rated 30V DC, up to 1A
Powered Output Relay
Side door lock: 12V DC, up to 1A
LEDs W/B Learn More
Button (1) Factory-reset
Recommend Max. Cable Length UA-Lock-Electric (400mA)
24 AWG length: 25 m
22 AWG length: 42 m
20 AWG length: 66 m
18 UACC-Cable-DoorLockRelay length: 100 m
UA-Lock-Magnetic-540kg
24 AWG length: 20 m
22 AWG length: 32 m
20 AWG length: 51 m
18 UACC-Cable-DoorLockRelay length: 80 m
UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m
22 AWG length: 20 m
20 AWG length: 30 m
18 UACC-Cable-DoorLockRelay length: 46 m
Other locks(1A)
24 AWG length: 9 m
22 AWG length: 15 m
20 AWG length: 24 m
18 UACC-Cable-DoorLockRelay length: 36 m
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Hub-Gate, V01
Software Information
The software version can be checked at https://unifi.ui.com
Dimensions 324.8 x 113.7 x 28.3 mm
Integrated Camera ✓
NFC Card & Keyfob Access ✓
PIN Access ✓
Apple/Google Wallet ✓
Mobile Unlock ✓
Two-Way Intercom & Doorbell Access ✓
Weatherproofing IP65
NDAA Compliant ✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight
Device: 965 g
Bracket: 445 g
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate, glass
Mount Material Powder-coated stainless steel
Mounting Wall mount, adapter to the gooseneck pedestal (Included)
Surface angle, flush mount, sunshield kit (Optional)
Indoor and Outdoor Use ✓
Ambient Operating Temperature
Device: -30 to 60° C
Display: -25 to 60° C
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (1) GbE RJ45 port
Connectivity BLE 4.2 NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 13W
Supported Voltage Range 48V DC
Sensors
Proximity sensor
ALS sensor
Display 177 mm (7") diagonal
Touch Screen Technology Capacitive multi-touch
Display Luminance Max. 1000 nits (Typical)
Resolution 1024 x 600 px
Microphone ✓
Speaker (1) Yes, 2W
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18'')
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
LEDs Amber
Buttons (1) Factory-reset
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3-Intercom, V01
Software Information The software version can be checked at https://unifi.ui.com
Dimensions
PoE in/out: 40 x 105 x 25 mm
Adapter: 43.5 x 138 x 30 mm
Weight
PoE in: 77 g
PoE out: 79 g
Adapter: 140 g
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Coaxial Connector BNC female
Networking Interface
(1) 10/100 MbE
(1) Homeplug AV
Power Method PoE++
PoE Interface
PoE in: (1) PoE++, 50V DC, 1.2A
PoE out: (1) PoE+, 48V DC, 0.6A
Max. Power Consumption 3W (Without PoE output)
ESD/EMP Protection Air: ±8kV, contact: ±4kV
LEDs White
Ambient Operating Temperature -10 to 40° C
Ambient Operating Humidity 5 to 90% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC
Model U-PoE++
Dimensions 106 x 63 x 34 mm
Weight 210 g (7.4 oz)
Output Voltage 48V DC @ 1.25A
Gigabit LAN Port ✓
Rated Voltage 100—240V AC @ 50/60Hz
Input Current
1.3A @ 120V AC
0.75A @ 230V AC
Inrush Current
<100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency 85+%
Output Ripple 1% max.
Switching Frequency 65 kHz
Line Regulation ≤ 1%
Load Regulation ≤ 3%
4-pair Powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC Connector IEC-320 C6
Data In / PoE RJ45 shielded socket
Surge Protection Difference and common mode
Clamping Protection 11V data, 60V power
Max. Surge Discharge 1500A (8/20 μs) power
Peak Pulse Current 36A (10/1000 μs) data
Shunt Capacitance <5 pF data
Response Time <1 ns
Power Method Universal AC input, 100—240V AC, 50/60 Hz
Power Supply AC/DC
Supported Voltage Range 100—240V AC
Max. PoE+ Wattage per Port by PSE 60W
Ambient Storage Temperature -30 to 70°C
Ambient Operating Temperature 0 to 40° C
Ambient Operating Humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
NDAA Compliant ✓
