NanoBeam 5 AC Gen2

442 RON
cu TVA
6 buc

Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Cantitate

Product description

Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Management Wi-Fi Radio

The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection

The NanoBeam AC features enhanced protection against ESD events.

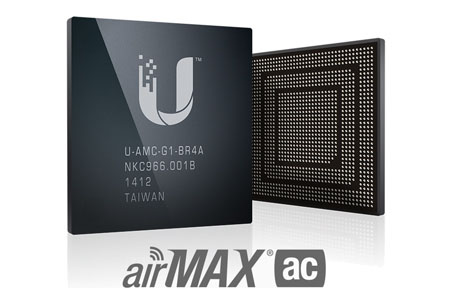

Superior Processing

Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

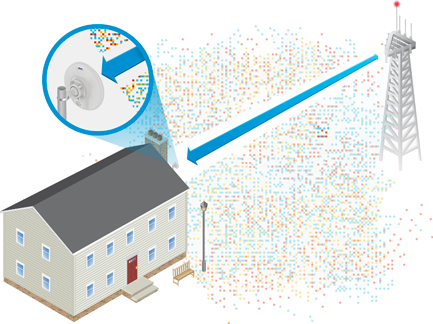

Incredible Antenna “Beam” Performance

The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Plug and Play Installation

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

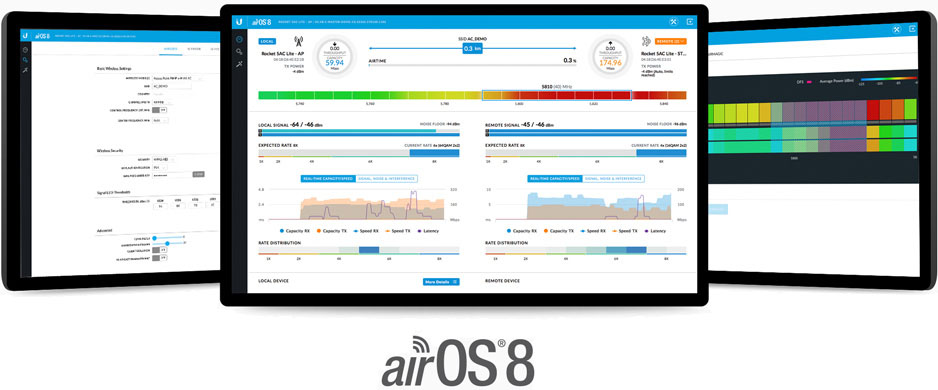

Now with airOS 8

airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Technical parameters

Connectors and Interfaces

LAN speed:  (1) 10/100/1000Mbps

Hardware

RAM memory size [MB]:  128

Physical characteristics

Buttons:  Reset
Operating temperature [°C]:  -40 up to 80
Width [mm]:  189
Height [mm]:  189

Power

PoE type:  Input

Software

Operating mode:  Client, Repeater, AP Router, Access Point, Client Router (wisp)
Default IP address:  192.168.1.20
Default login and password:  ubnt / ubnt

Wireless features

Transmission speed - WiFi 5GHz [Mb/s]:  866
WiFi standards:  airMAX ac
Tx power 5GHz [dBm]:  25
Security:  WPA2 AES
Type of antenna:  Build-in
Fixed antennas:  1
Antenna gain [dBi]:  19

6 buc

Caracteristici

Capacitate Wireless
450 Mbps
Capacitate LAN
1 Gbps
Frecventa
5GHz
Castig Antena
19 dBi
Numar porturi LAN
1

NanoBeam 5 AC 19 Gen2

Specificatiile Producatorului
