LiteBeam M5 23dBi

219 RON
cu TVA
1 buc

The LBE-M5-23 was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range and features high performance of up to 100+ Mbps in real outdoor throughput and an incredible range of up to 30+ km.

Cantitate

Product description

The LiteBeamM provides 23dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity. Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed = only a single wrench is required for pole-mounting.

A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.

This Device is the most Cost-Effective airMAX CPE (since 5.6.3 firmware can works as Acess point) yet.

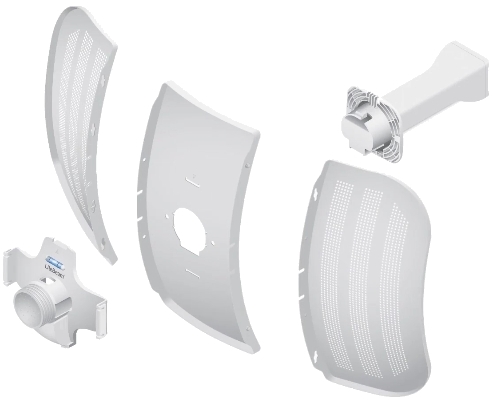

Package contains

  • Antenna feed
  • (3) Reflector panel
  • Feed receiver
  • Ball joint mount
  • PoE power adapter
  • Power cord
  • Metal strap

Technical parameters

Connectors and Interfaces

LAN speed:  (1) 10/100Mbps

Hardware

RAM memory size [MB]:  64
CPU:  MIPS 74Kc
CPU frequency [MHz]:  560

Physical characteristics

Purpose:  Outdoor
Buttons:  Reset
Operating temperature [°C]:  -40 up to 70
Weight [g]:  750
Depth [mm]:  184
Width [mm]:  362
Height [mm]:  267

Power

Max. power consumption [W]:  4
Power over Ethernet:  24V DC
PoE type:  Input

Software

IPv6 support:  Transparent (bridge mode)
Operating mode:  Client, AP Router, Access Point, Client Router (wisp)
Default IP address:  192.168.1.20
Default login and password:  ubnt / ubnt

Wireless features

Wireless frequency [GHz]:  5
Transmission speed - WiFi 5GHz [Mb/s]:  150
WiFi standards:  airMAX, 802.11a, 802.11n
Tx power 2.4GHz [dBm]:  25
Security:  WPA2 AES
5GHz MIMO:  1 x 1 SISO
Type of antenna:  Build-in
Internal antennas:  1
Antenna gain [dBi]:  23
1 buc

Caracteristici

Capacitate Wireless
150 Mbps
Capacitate LAN
100 Mbps
Frecventa
5GHz
Castig Antena
23 dBi
Numar porturi LAN
1

LiteBeam

Specificatiile Producatorului
