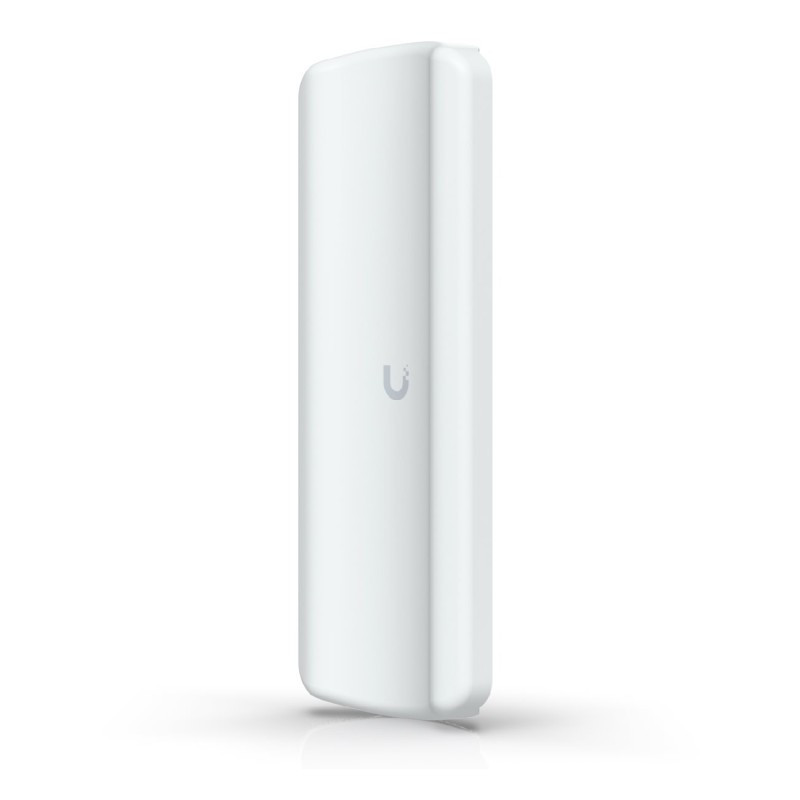

Device Bridge Pro Sector

Dimensions 360.9 x 129.6 x 71.4 mm
WiFi Standard WiFi 5
Spatial Streams 2
Coverage Area 5 km
Mounting Locations Pole
Weatherproofing IPX6
Power Method PoE
MIMO 5 GHz 2 x 2
Max. Data Rate 5 GHz 400 Mbps (BW40)
Antenna Gain 5 GHz 17 dBi
Max. TX Power 5 GHz 25 dBm
Max. Conducted TX Power 25 dBm (Combined)
Supported Data Rates
802.11ac (WiFi 5) 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security WPA2 AES
Max. Power Consumption 6W
Supported Voltage Range 42.5—57V DC
Networking Interface (1) GbE RJ45 port
Antennas Internal
Management Ethernet WiFi
Channel Bandwidth 20/40 MHz
Wind Loading 128.2N at 200 km/h
Weight Device: 782 g
With mount: 835 g
Enclosure Material UV-stabilized polycarbonate
Mount Material UV-stabilized polycarbonate, stainless steel
Pole Mount Diameter 24—60 mm
Button (1) Factory-reset
LEDs
System
Power, Ethernet
NDAA Compliant ✓
Certifications CE, FCC, IC
Operating Frequency
US/CA:
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide:
5150 - 5875 MHz
Ambient Operating Temperature -40 to 60° C
Ambient Operating Humidity 5 to 95% noncondensing
