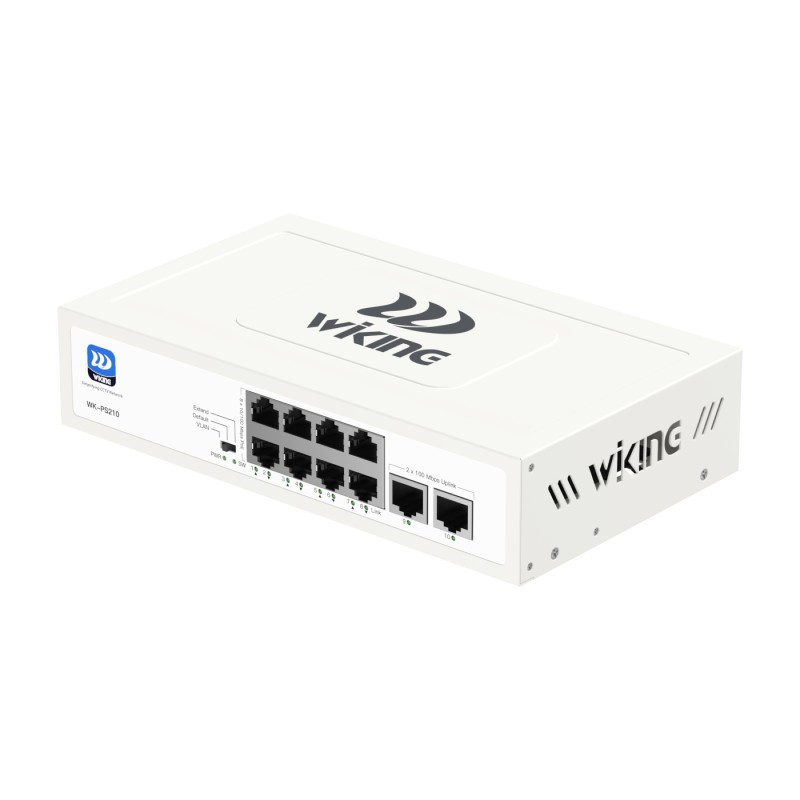

WK-PS210 PoE switch

The WK-PS210 is a compact and cost-effective 100Mbps PoE switch, ideal for small to medium-sized surveillance systems or IP networks. It features 8 PoE ports supporting IEEE 802.3af/at (up to 30W per port) and 2 uplink ports for connection to the backbone network. With smart functions like VLAN, Extend mode, and PoE watchdog, it offers a reliable and intelligent solution for network infrastructure. It’s a perfect choice for users looking for a simple and functional way to power and transmit data to surveillance systems, IP phones, or Wi-Fi access points without the need for additional splitters or configuration.

Key Features:

• 8× PoE ports (10/100 Mbps) supporting 802.3af/at standards – up to 30W per port, total PoE budget 76W
• 2× uplink ports (10/100 Mbps) for connection to network or NVR
• Extend mode – data and power transmission up to 250 meters (speed reduced to 10Mbps)
• VLAN mode – port isolation for enhanced network security
• PD Alive (PoE watchdog) – automatic restart of unresponsive IP devices
• Silent fanless design – ideal for offices, hotels, and quiet environments
• Compact metal housing – suitable for desktop use or wall mounting

A Switch for Every Office

Compact dimensions, silent operation, easy to use – an ideal networking solution for modern workspaces.

Port Isolation for a Stable, Interference-Free Network

In VLAN mode, individual PoE ports are isolated and can only communicate with the uplink ports. This prevents unnecessary broadcast traffic between devices, protecting the network from being overwhelmed by so-called "broadcast storms" and enhancing overall reliability and transmission security.

Smart PoE Watchdog – Camera Offline? The Switch Automatically Restarts It

The PD Alive feature automatically detects whether a connected device (e.g., IP camera) is responding. If the camera becomes unresponsive, the switch will automatically power-cycle the port to restart it. This ensures continuous operation of the surveillance system without administrator intervention.

Extend PoE Reach up to 250m

In Extend mode, the switch can power and transmit data to a device at distances up to 250 meters (at reduced speed of 10 Mbps). Ideal for deploying cameras in larger areas where standard PoE is limited to 100m.

Fanless and Quiet – Perfect for Office Use

Thanks to fanless passive cooling, the switch operates completely silently. It is suitable not only for network cabinets but also for placing directly on desks in offices, receptions, or small businesses.

Package Contents:

• PoE switch WK-PS210
• 230 VAC power cable
• Quick installation guide
